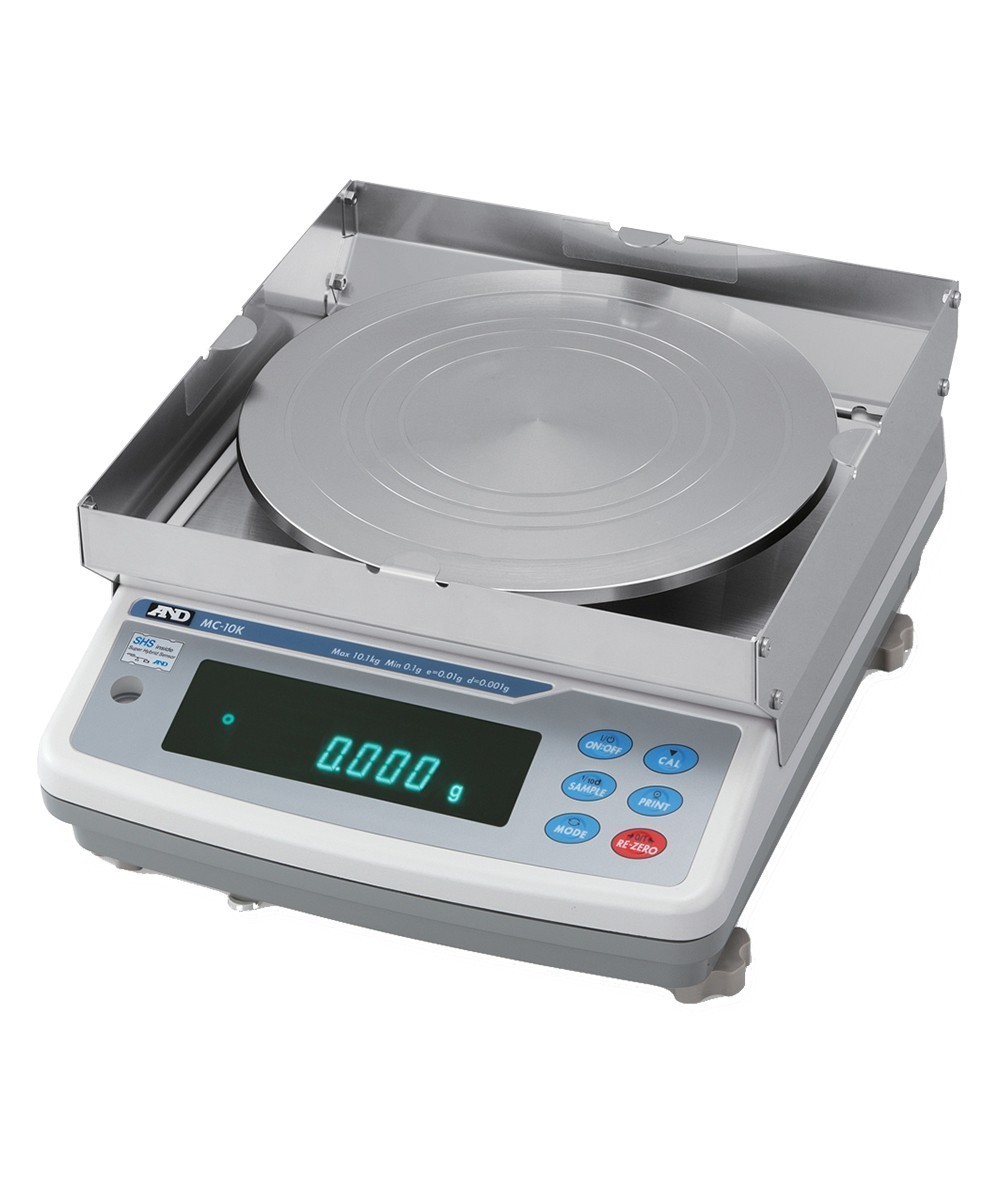

AND Instruments MC Series Mass Comparators

Score: 5.00 (votes: 1)
No reviews.
SKU Weighing Capacity (g) Readability Weighing Pan Size Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
AND Instruments MC Series Mass Comparators MC-1000 1100 0.0001 g 128 x 128 mm 0 £3881.00 1000 + -
AND Instruments MC Series Mass Comparators MC-6100 6100 0.001 g 165 x 165 mm 0 £3881.00 1000 + -
AND Instruments MC Series Mass Comparators MC-10K 10100 0.001 g 270 x 210 mm 0 £5146.00 1000 + -
AND Instruments MC Series Mass Comparators MC-30K 31000 0.01 g 270 x 210 mm 0 £5146.00 1000 + -
AND Instruments MC Series Mass Comparators MC-100KS 101000 0.1 g 386 x 346 mm 0 £7761.00 1000 + -

For management of masses in the OIML Class F1 or below

The Mass Comparator can be used for mass verification. It displays the weighing results with an extra decimal place not normally found in balances of the same capacity.



  • For management of masses in the OIML Class F1 or below
  • Extra decimal place for monitoring fine weight changes with heavy tare weights
  • Stabilizing filter to lessen errors due to drafts or vibrations
  • Auto-centering pan to avoid corner-load errors and ensure higher accuracy (optional)
  • Internal calibration mass for simplified calibration of the balance
  • Fast stabilization of approx. 1.5 seconds
  • GLP/GMP/GCP/ISO compliant output
  • Large bright Vacuum Fluorescent Display
  • Multiple weighing units of measurement



Specifications
Model MC-1000 MC-6100 MC-10K MC-30K MC-100KS
Weighing capacity 1100 g 6100 g 10.1 kg 31 kg 101 kg
Minimum weighing value 0.0001 g 0.001 g 0.01 g 0.1 g
Repeatability (Standard deviation)** 0.0005 g (for 1 kg)
0.0004 g (for 500 g)
0.004 g (for 5 kg)
0.0015 g (for 2 kg)
0.005 g (for 10 kg)
0.004 g (for 5 kg)
0.015 g (for 20 kg) 0.2 g (for 100 kg) 0.1 g (for 60 kg)
Linearity ±0.003 g ±0.03 g ±0.03 g ±0.2 g ±2 g
Sensitivity drift (10 °C to 30 °C)*** ±2 ppm/°C ±3 ppm/°C ±6 ppm/°C
Weighing pan 128 mm × 128 mm 165 mm × 165 mm 270 mm × 210 mm 386 mm × 346 mm
** Repeatability when the auto-centering pan or an automatic loading machine is used under good ambient conditions.
*** When automatic self-calibration is not used.


Internal CalibrationSuper Hybrid SensorVFD DisplayRS-232C InterfaceGLP CompliantTime and DateData Memory FunctionCounting with ACAIPercentage FunctionAnimal WeighingComparator FunctionAuto Power ONAuto Power OFFUnderhookSoftware
    • SKU
      MC-1000
    • Commodity Codes
      90160010
  • Manufacturer
    A&D Instruments Limited
  • Country of Origin
    Japan
  • Weighing Capacity (g)
    1100, 6100, 10100, 31000, 101000
  • Readability
    0.0001 g, 0.001 g, 0.01 g, 0.1 g
  • Weighing Pan Size
    128 x 128 mm, 165 x 165 mm, 270 x 210 mm, 386 x 346 mm
  • Calibration
    Internal
