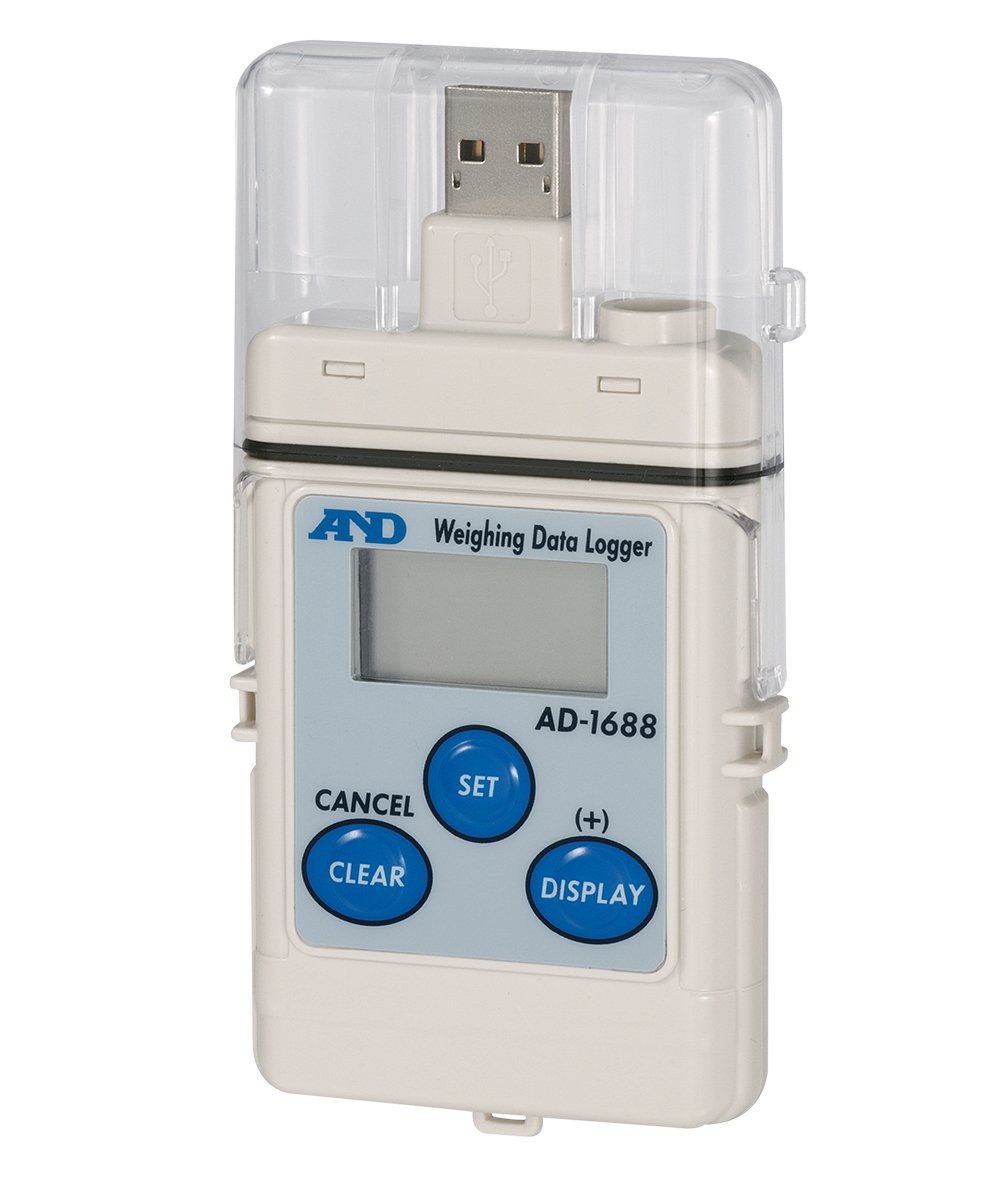

AND Instruments AD-1688 Weighing Data Logger

Not rated yet
Specifications
Memory sizeApprox. 5,000 data sets in the standard format (15 characters in 1 data set) can be stored
Clock error±1 minute / month
Compatible OSWindows 2000 / XP / Vista
Dedicated power supplyNot required. Power is supplied by the weighing instrument or PC.
Operating environment5 °C to 40 °C (41 °F to 104 °F), 85 %RH or less (no condensation)
Dimensions55 × 103 ×16.5 mm
WeightApprox. 60 g
Standard accessoriesUSB extension cable (0.5 m)*, Three RS-232C cables (1 m)
* If the AD-1688 is not detected by your PC
Depending on your type of PC, if a USB extension cable is used, the signal may weaken and not be detected by the computer.
Please either connect the AD-1688 directly to your PC without using a USB extension cable, or connect the AD-1688 to your computer using an off-the-shelf USB hub.
Price Upon Application Or Discontinued


Save, Carry, and Retrieve! Handheld device that lets you collect weighing data without connecting the balance or scale to a PC!

  • Dual interface: An RS-232C interface to import weighing data from an A&D balance or scale and a USB interface to export the data to a PC (no driver software is required)
  • Large memory: approx. 5000 weighing data sets (in the A&D standard format) can be stored
  • Internal clock: date, time, & seq. N° can be added to weighing data
  • Interval mode: periodic data acquisition
  • Complex data records: records containing multiple data (tare, unit weight, weight, count, comparison result, product name…).
  • No battery required: receives power supply directly from a balance, scale or PC
Compatible Devices (Operation Confirmed)
CategoryProductOperationRS-232C
BalanceAD-4212A/BOK25 pins
AD-4212CA gender changer is required.9 pins
EK-iOK9 pins
EK-HOK25 pins
FX-i/FZ-i/FX-iWP/FZ-iWPOK9 pins
GHOK9 pins
GPOK25 pins
GROK25 pins
GX/GFOK25 pins
GX-K/GF-KOK25 pins
HR-iOK9 pins
HROK25 pins
Moisture AnalyzerMS/MX/MF/MLOK25 pins
ViscometerSVOK25 pins
Counting ScaleHC-iOKDIN
FC-i/FC-SiOK9 pins
Platform ScaleFS-iA gender changer is required.Dedicated cable
FG-M/LOnly when used with AC adapterDIN
HV-G/HW-GFor the VFD type (KGV) onlyDIN
SC/SEA gender changer is required.Dedicated cable
SWA gender changer is required.Dedicated cable
Weighing IndicatorAD-4402OK25 pins
AD-4404OK25 pins
AD-4405OK9 pins
AD-4406OK9 pins
AD-4410OK9 pins
 *Operation with devices made by manufacturers other than A&D is not guaranteed.
    • SKU
      AD-1688
    • Commodity Codes
      90160090
  • Manufacturer
    A&D Instruments Limited
  • Country of Origin
    Japan
