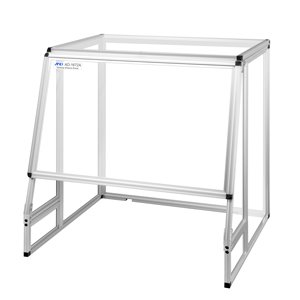

AND Instruments AD-1672A Tabletop Breeze Break with inclined front beam panel 27" W x 28.5" H x24" D
| Features | |||||||||
 Shields a highly sensitive analytical balance from breezes and minute temperature changes caused by air conditioning or people passing by. Consists of antistatic plastic panels to minimize the effect of static electricity on the balance Possible to pass RS-232C and AC adapter cables through two guides at the bottom of the back side Ready to assemble and easy to move from one location to another | |||||||||
  With a BM-20 micro-balance and an AD-1671 anti-vibration table | |||||||||
| Specifications | |||||||||
|
Laboratories are typically kept at a constant temperature by air conditioning. Contrary to what you may believe, a strict temperature control can adversely affect the stability of a micro analytical balance when the air conditioning causes strong air circulation and minute repeated temperature fluctuations around the set temperature.
The AD-1672 / AD-1672A is effective in shielding your balance from such disturbances.
AD-1672: Standard tabletop breeze break
AD-1672A: Tabletop breeze break with inclined front beam panel
| Accessories required to connect to the AD-8526 |
| Weighing instrument | Interface option for the instrument | Communication cable (2 m) |
| GX, GF, GX-K, GF-K, GP, FP AD-4212A, AD-4212B, GR, HR | None (D-sub 25-pin, standard accessory) | AX-KO1710-200 |
| EK-i, EW-i, FC-i, FC-Si, HR-i | None (D-sub 9-pin, standard accessory) | AX-KO2466-200 |
| EK-G, EK-H, ET-W, EW-G | OP-03 (D-sub 25-pin) | AX-KO1710-200 |
| HV-G, HV-WP, HW-G, HW-WP, HW-G | None (Din 7-pin, standard accessory) | AX-KO1786-200 |
| FG, HC-i | OP-03 (Din 7-pin) | AX-KO1786-200 |
| FS, FS-KL | OP-03 (Din 8-pin) | AX-KO1786-200 |
| FG-L, FG-M | OP-23 (Din 8-pin) | AX-KO1786-200 |
| AD-4322A | OP-04 (D-sub 25-pin) | AX-KO1710-200 |
| AD-4405 | None (D-sub 9-pin) | AX-KO2466-200 |
| AD-4410 | None (D-sub 9-pin, standard accessory) | AX-KO2466-200 |
| Please use the Ethernet interface option GH-08 for the GH Series, FXi-08 for the FZ-i / FX-i, FZ-iWP / FX-iWP, and FZ-CT / FX-CT Series, and AD-4212A-08 for the AD-4212A / AD-4212B Series. | ||
