Inductive 2mag Multiple Stirrers with Internal Control
Inductive multiple stirrers, maintenance and wear-free, designed for chemical, biotechnical and medical applications of all kinds, developed for demanding everyday laboratory work and uncompromising continuous operation.
Technical Specifications
Type | MIX 8 XL | MIX 12 XL | MIX 4 MS | MIX 6 | MIX 15 | MIX 15 eco | ||||
Stirring points | 8 | 12 | 4 | 6 | 15 | 15 | ||||
Stirring point distance | 90mm | 90mm | 140 mm | 130 mm | 65 mm | 65 mm | ||||
Stirring volume / stirring point | 1 - 3,000 ml | 1 - 3,000 ml | 1 - 3,000 ml | 1 - 1,500 ml | ||||||
Speed range | 100 - 1,600 rpm | 100 - 1,600 rpm | 100 - 2,000 rpm | 120 - 1,200 rpm | ||||||
Stirring power (max.) | 20W | 20 W | 4 x 7 W (28 W) | 20 W | 10 W | |||||
Power setting | 5/10/15/20 W (4-step) | 5/10/15/20 W (4-step) | 5/10/15/20 W (4-step) | - | ||||||
Material housing | Stainless Steel | Stainless Steel | Stainless steel | |||||||
Permitted operation conditions | -10 °C up to +50 °C (at 80% humidity) | -10 °C up to +50 °C (at 80% humidity) | -10 up to +50°C (at 80% humidity) | |||||||
Electrical data | 100-240 V / 50-60 Hz / 1.5 A | 100-240 V / 50-60 Hz / 1.5 A | 100-240 V / 50-60 Hz / 1.5 A | |||||||
Dimensions (WxDxH) | 185 x 420 x 38 mm | 275 x 420 x 38 mm | 245 x 425 x 38 mm | |||||||
Protection category | IP65 | IP65 | IP65 | |||||||
Weight (gross) | approx. 7,8 kg | approx. 10.2 kg | approx. 9.1 kg | approx. 9.0 kg | ||||||
Order no. | 30208 | 30212 | 30404 | 30006 | 30015 | 30115 | ||||
Powerful 8 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, power reserves up to 3,000 ml per stirring point, extremely wide speed range of 100 to 1,600 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer. Clear digital display for settings of stirrer speed and power, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed, automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning |

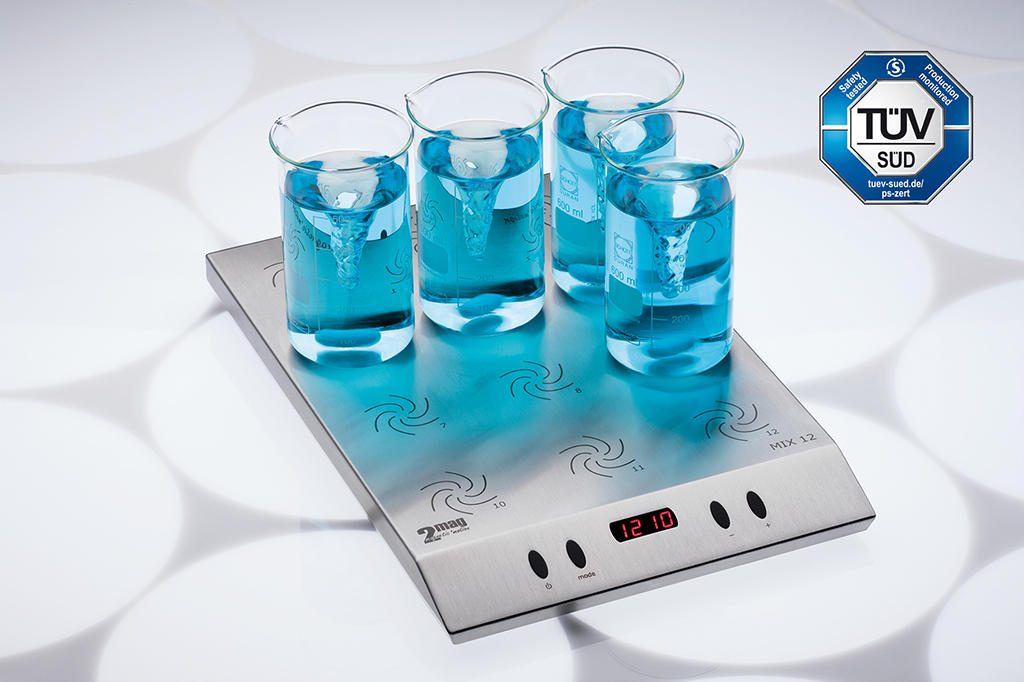

Powerful 12 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, power reserves up to 3,000 ml per stirring point, extremely wide speed range of 100 to 1,600 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer. Clear digital display for settings of stirrer speed and power, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed, automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning. |
Powerful 4 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, power reserves up to 3,000 ml per stirring point, individual and independent speed setting for each stirring drive (Master-Slave-Technology), also ON/OFF function, synchronous speed mode for all positions, extremely wide speed range of 100 to 2,000 rpm, jerk-free stirring even at low speeds. |

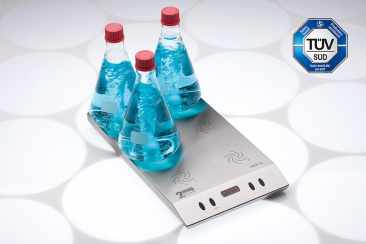

Powerful 6 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, power reserves up to 3,000 ml stirring volume per stirring point, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer. Clear digital display for settings of stirrer speed and power, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed, Automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning. |

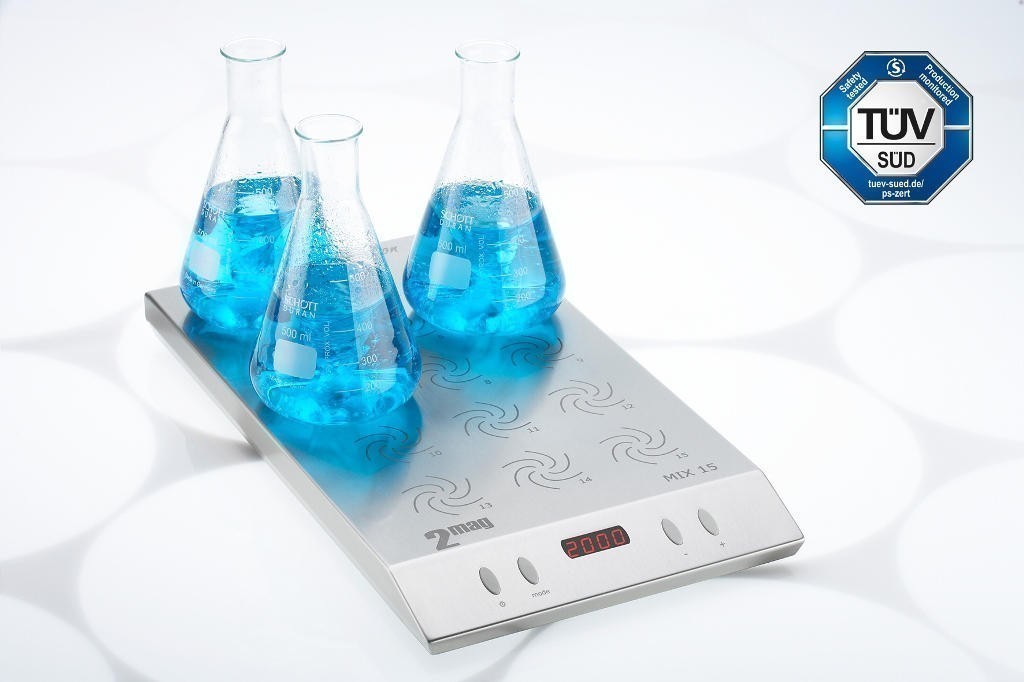

Powerful 15 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, power reserves up to 3,000 ml per stirring position, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer. Clear digital display for settings of stirrer speed and power, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed, Automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning. |

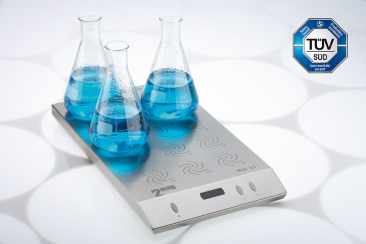

Powerful 15 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, power reserves up to 3,000 ml per stirring position, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 4-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer. Clear digital display for settings of stirrer speed and power, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed, Automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning. |
-
Manufacturer2mag AG
-
Country of OriginGermany
-
Stirring Points4, 6, 15, 8, 12
-
Stirring Point Distance (mm)140, 130, 65, 90
-
Maximum Stirring Volume / Stirring Point1 - 3,000 ml, 1 - 1,500 ml
-
ModelMIX 4 MS, MIX 6, MIX 15, MIX 15 eco, MIX 8 XL, MIX 12 XL
-
Speed Range (rpm)100 - 2,000, 120 - 1,200, 100 - 1,600
