Inductive 2Mag Single Point Stirrers With Internal Control
Inductive magnetic stirrers with one stirring point, maintenance and wear-free, designed for chemical, biotechnical and medical applications of all kinds, developed for demanding everyday laboratory work and uncompromising continuous operation.
Technical Specifications
Type | luMIX | MIX 1 eco | MIX 1 | MIX 1 XL | |

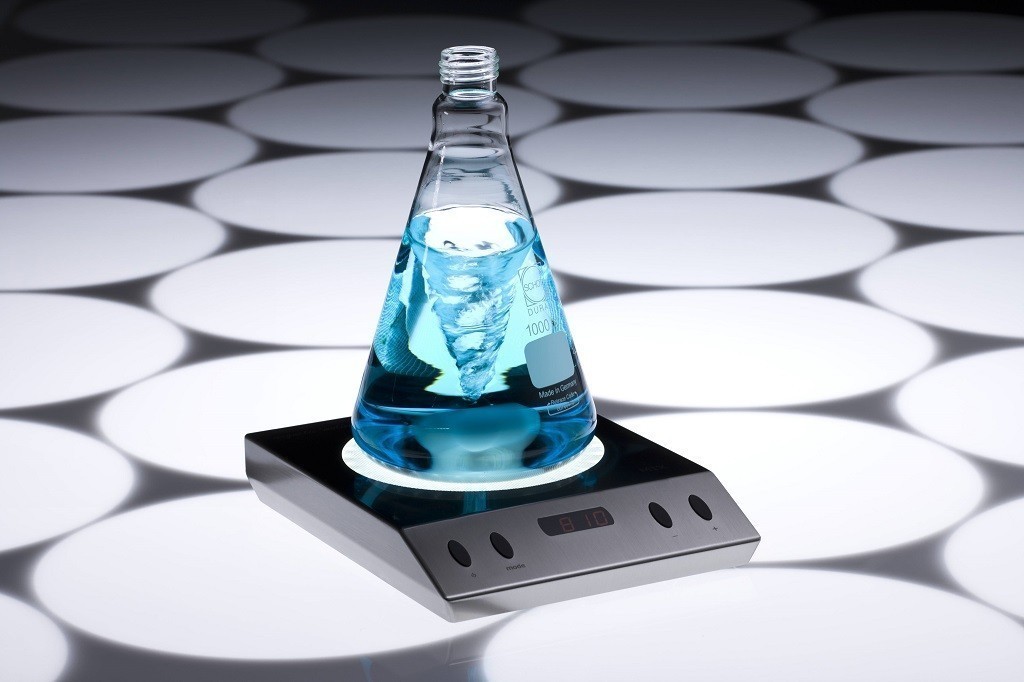

Light - Bright and warming-free luminescent PMMA plate, white LEDs with homogenous brightness and variable light intensity (4-step), non-reflecting illumination. Stirring - 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, extremely wide speed range from 100 to 2,000 rpm, jerk-free stirring even at low speeds, 4-step power settings for high power with regard to large and viscous stirring volumes and reduced power for the warming-free continuous operation. Clear digital display for light-, speed- and power settings, SoftStart procedure for reliable catching/centering and safe accelerating of the stirring bar, QuickSet for quick setting of start and maximum speed, automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning. |
Price-optimized magnetic stirrer, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for mixing of solutions, speed range from 120 up to 1,400 rpm, jerk-free stirring even at low speeds |
100% maintenance-free and wear-free inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, speed range from 100 up to 2,000 rpm, jerk-free stirring even at low speeds. 4-step power settings for high power with regard to large and viscous stirring volumes and reduced power for the warming-free continuous operation. |
Maintenance-free 2mag-motor-drive with large speed range from 70 up to 2,000 rpm, fully encapsulated and tight stainless steel housing (IP64), extremely robust construction and performance, easy to clean and firm. Integrated controller with strong 20 watts stirring power, 4-step power setting for high power with regard to large and viscous stirring volumes and reduced power for the warming-free continuous operation, SoftStart-function (adjustable, 4 steps) for reliable catching/centering and safe accelerating of the stirring bar at different volumes and viscosities, adjustable interval times for automated restart of the stirrer after max. 240 seconds. Digital display for speed-, power-, SoftStart- and interval setting, QuickSet for quick setting of start and maximum speed, QuickStop-function against after-run and glass breakage, storage of last function status when turning off. 2mag mixWATCH - Stirring bar monitoring with fully automatic trim of the maximum reachable speed for a reliable and unattended operation of the stirrer. Up to 40 litres or for viscous media |
||
Stirring points | 1 | 1 | 1 | 1 | |
Stirring volume / stirring point | 1 - 3,000 ml | up to 3 litres | up to 10 litres | up to 40 litres | |
Speed range | 100 - 2,000 rpm | 120 - 1,400 rpm | 100 - 2,000 rpm | 70 - 2,000 rpm | |
Stirring power (max.) | 20 W | 10 W | 20 W | ||
Power setting | 25/50/75/100% (4-step) | - | 4-step (5/10/15/20 W) | ||
Material housing | Stainless Steel | ||||
Permitted operation conditions | -10 up to +50°C (at 80% humidity) (lumix only) -10 up to +50°C (at 80% humidity) | ||||
Electrical data | 100-240 V / 50-60 Hz / 1.5 A | 100-240 V / 50-60 Hz / 0.7 A | 100-240 V / 50-60 Hz / 1.5 A | ||
Dimensions (WxDxH) | 120 x 120 x 35 mm | 188 x 238 x 38 mm | 225 x 280 x 35 mm | ||
Protection category | IP65 | IP64 | |||
Weight (gross) | approx. 1.8 kg | approx. 4.2 kg | approx. 4.5 kg | ||
Order no. | 30101 | 30001 | 30201 |
