2mag Multi-Position Stirring Heating Blocks with heatMIXcontrol
ZoomCreated with Sketch.

2mag Multi-Position Stirring Heating Blocks with heatMIXcontrol

Score: 5.00 (votes: 1)
No reviews.
2mag AG
SKU Stirring Positions Stirring Positions Distance (mm) Bore Holes Ø/T Stirring Volume / Stirring Point Models Temperature Range Speed Range (rpm) Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
2mag Multi-Position Stirring Heating Blocks with heatMIXcontrol 63100 15 65 Ø 57.5 / 48 mm 1 - 150 ml DRYBATH 15-100 +40 °C up to +200 °C 100 - 2,000 20000 £11140.00 1 + -
2mag Multi-Position Stirring Heating Blocks with heatMIXcontrol 63250 15 84 Ø 71.5 / 78 mm 1 - 400 ml DRYBATH 15-250 +40 °C up to +200 °C 100 - 2,000 35000 £12235.00 1 + -
2mag Multi-Position Stirring Heating Blocks with heatMIXcontrol 63825 8 100/140 Ø 87.2 / 78 mm 1 - 250 ml DRYBATH 8-250 ERL +40 °C up to +200 °C 100 - 2,000 40000 £11610.00 1 + -

Technical Specifications

Type DRYBATH 15-100 DRYBATH 15-250 DRYBATH 8-250 ERL
Stirring positions 15 15 8
Stirring positions distance 65 mm 84 mm 100 mm/140 mm
Bore holes Ø/T Ø 57.5 / 48 mm Ø 71.5 / 78 mm Ø 87.2 / 78 mm
Stirring volume / stirring point 1 - 150 ml 1 - 400 ml 1 - 250 ml
Stirring power (max.) 40 W
Power setting 10 - 100% (10-step)
Temperature range +40 °C up to +200 °C
Speed range 100 - 2,000 rpm
Operating voltage 230 V
Heating power (max.) at 230 V 1,000 W 1,150 W
Dimensions (WxDxH) 280 x 430 x 120 mm 335 x 515 x 150 mm
Protection category IP20
Weight (gross) approx. 20 kg approx. 35 kg approx. 40 kg
Order no. 63100 63250 63825

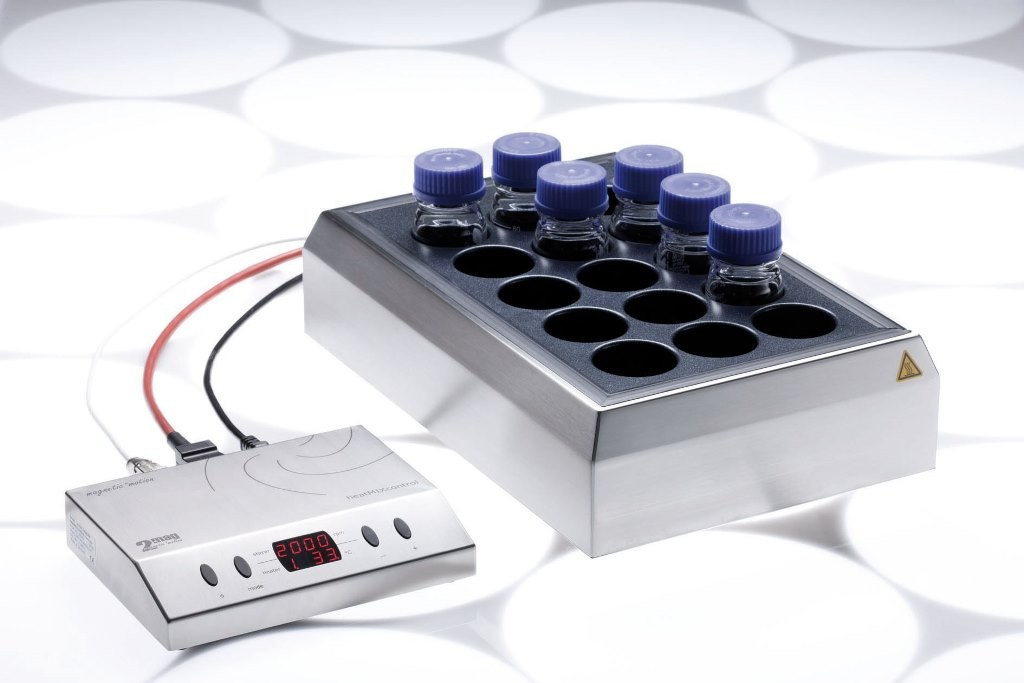

2mag stirring-heating block combination with 15 stirring positions, 15 bore holes, ø 57.5 mm, depth 48 mm, distance 65 mm, suitable for 100 ml lab-flasks (e.g. Schott) and for 150 ml beaker glasses (tall form).

Stirring - Maintenance-free and wear-free by inductive 2mag-Magnetic Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater,
SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar.

Heating - Massive heating block made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for a homogenous temperature distribution and protection against accidental contact, independent over-temperature protection inside the plate.

Inclusive separate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing.

  •  Stirring-heating block with 15 positions
  • Borehole diameter 57.5 mm
  • For 100 ml bottles or 150 ml beaker glasses (tall form)
  • Stirring speed from 100 up to 2.000 rpm
  •  Fast heating-up up to 200°C
  • Energy-saving
  • For all vessel sizes and shapes
  • Simple system integration
  • 3 years warranty
  •   Developed and made in Germany


Delivery contents:

  • STIRRING DRYBATH 15-100
  • Control unit heatMIXcontrol

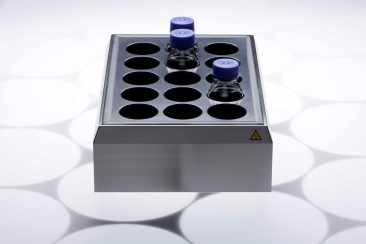

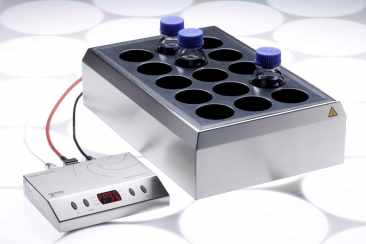

2mag stirring-heating block combination with 15 stirring positions, 15 bore holes, ø 71.5 mm, depth 78 mm, distance 84 mm, suitable for 250 ml lab-flasks (e.g. Schott) and for 400 ml beaker glasses (tall form).

Stirring - Maintenance-free and wear-free by inductive 2mag-Magnetic Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar.

Heating - Massive heating block made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for a homogenous temperature distribution and protection against accidental contact, independent over-temperature protection inside the plate.

Inclusive separate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing.

  • Stirring-heating block with 15 positions
  • Borehole diameter 71.5 mm
  • For 250 ml bottles or 400 ml beaker glasses (tall form)
  • Stirring speed from 100 up to 2.000 rpm
  • Fast heating-up up to 200°C
  • Energy-saving
  • For all vessel sizes and shapes
  • Simple system integration
  • 3 years warranty
  •   Developed and made in Germany


Delivery contents:

  • STIRRING DRYBATH 15-250
  • Control unit heatMIXcontrol

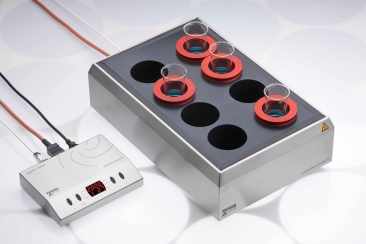

2mag stirring-heating block combination with 8 stirring positions, 8 bore holes, ø 87.2 mm, depth 78 mm, suitable for 250 ml Erlenmeyer flasks.

Stirring - Maintenance-free and wear-free by inductive 2mag-Magnetic Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar.

Heating - Massive heating block made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, contact adapters for an optimal heat transfer, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for a homogenous temperature distribution and protection against accidental contact, independent over-temperature protection inside the plate.

Inclusive separate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing. Inclusive 8 contact adapters for an optimized heat transfer.

  • Stirring-heating block with 8 positions
  • Borehole diameter 87.2 mm
  • For 250 ml Erlenmeyer flasks
  • Stirring speed from 100 up to 2.000 rpm
  • Fast heating-up up to 200°C
  • Energy-saving
  • For all vessel sizes and shapes
  • Simple system integration
  • 3 years warranty
  • Developed and made in Germany


Delivery contents:

STIRRING DRYBATH 8-250 ERL

  • Control unit heatMIXcontrol
  •  8 reducing adapters for Erlenmeyer flasks

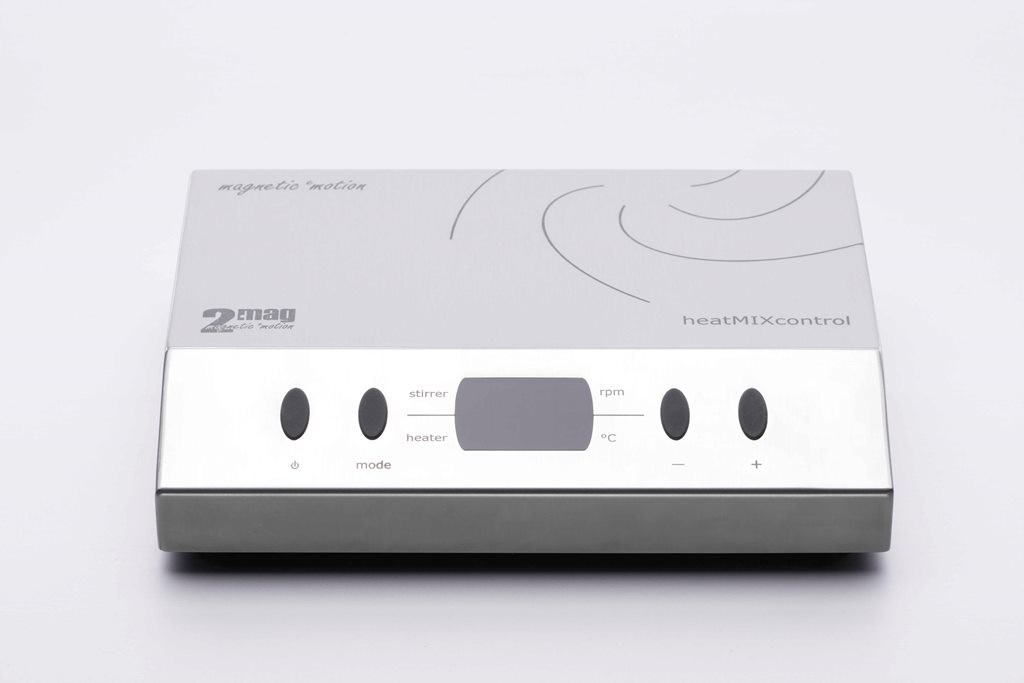

Separate Control Unit Heatmixcontrol For Operation Of 2Mag Stirring Drybath And Stirring Hotplate.

Long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, independent and adjustable over-temperature limiter for the additional protection of the heating controller against technical defects or unintended operation errors, stainless steel housing, compact and space-saving, connection for external Pt100 sensor, RS232 interface.

    • Weight (In Grams)
      20000 g
    • SKU
      63100
    • Commodity Codes
      84798200
  • Manufacturer
    2mag AG
  • Country of Origin
    Germany
  • Stirring Positions
    15, 8
  • Stirring Positions Distance (mm)
    65, 84, 100/140
  • Bore Holes Ø/T
    Ø 57.5 / 48 mm, Ø 71.5 / 78 mm, Ø 87.2 / 78 mm
  • Stirring Volume / Stirring Point
    1 - 150 ml, 1 - 400 ml, 1 - 250 ml
  • Models
    DRYBATH 15-100, DRYBATH 15-250, DRYBATH 8-250 ERL
  • Temperature Range
    +40 °C up to +200 °C, Not Applicable
  • Speed Range (rpm)
    100 - 2,000, Not Applicable
