Statebourne Cryogenics 9902149-NB 85 Litres Capacity Biorack 3000 Refrigerators Complete with 2ml Racking but NO Boxes

Not rated yet


The Biorack series of refrigerators provide highly efficient storage of bulk quantities of cryovials. Racking systems housed within these ultra-low loss cryogenic refrigerators enable users to store large quantities of Biomedical material over long periods of time, safe in the knowledge that storage temperatures even in the vapour phase, will be below-190°C.



LN2 Capacity (litres)85
Evaporation Rate (%/day)0.63
Static holding time (days)1351
Weight Empty (Kg)42
Weight Full (kg)110
Neck Diameter (mm)216
Overall Height (mm)738
Overall Diameter (mm)646
Total 2ml Cryovial Capacity3000
Cryobox Format10x10
  • £0.00
In Stock:

Biorack Series Ultra-Low loss storage refrigerators

Advanced super insulation and ultra high vacuum techniques allow storage times between refills of up to 6 months. The Biorack Series are available in four sizes, with 750, 3000, 4800 and 6000 x 2ml Cryovial capacities. All Bioracks are supplied complete with racks and polycarbonate cryoboxes.

Features

  • 5 YEAR VACUUM WARRANTY
  • 4 models from 750 to 6000 cryovial capacity
  • Durable aluminium construction
  • Space saving for storage of IVF samples
  • Ultra-low evaporative losses
  • Compatible with all major cryobox brands
  • Heavy duty lockable enclosure offers excellent security
  • Liquid or vapour phase option available
  • Temperature data-logging device available
  • Storage of 96 well plates, straws, 5ml tubes, blood bags, canes and cord blood bags


Temperature Logger Alarm Unit

Providing continuous dependable monitoring of the temperature within the refrigerator, the CryoGuard data logger is the ideal choice for users who want to record sample temperature over long periods.

The unit has an 3 way audible alarm for:

  • Low LN2 Level
  • High temperature
  • Low battery power

Cryoguard

All Biorack Series units are available with an optional Cryoguard low level alarm, this fitted together with an alarm plug can be calibrated for both Liquid and Vapour phase low level alarm.

Autofill Option

The Autofill accessory option is particularly useful for the long-term storage of samples within vapour phase environments.

The system works by continuously monitoring the LN2 within the biorack and topping up the unit when natural evaporation causes the level to fall below a safe set-point,vital for the long term viability of the material being stored.

This method is less economical in terms of LN2 consumption but provides the user with the ability to finely control the level within the unit over extended periods of up to 8 weeks between supply reservoir refills.

Please note: The Auto-fill is not available for the Biorack 750 and also the Auto-fill requires fitting to a Cryostor supply tank, sold separately.

    • SKU
      9902149-NB
  • Manufacturer
    Statebourne Cryogenics


Part NumberDescription


6401238Biorack 750   neck/alarm plug wall bracket
6401169Biorack 3000 ,4800,6000 neck/alarm   plug wall bracket

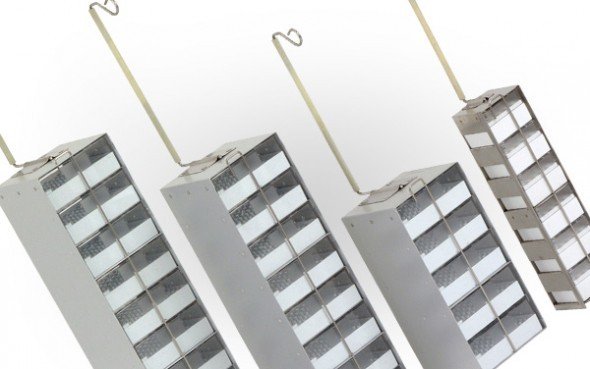

5801730Biorack 3000 Cane Storage Rack
5801731Biorack 4800 Cane Storage Rack
5801564Biorack 750 Rack Assembly 2ml   Cryovials
5801250Biorack 3000 Rack Assembly 2ml   Cryovials
5801525Biorack 4800 Rack Assembly 2ml   Cryovials
5801236Biorack 6000 Rack Assembly 2ml   Cryocvials
5801428Biorack 3000 Rack Assembly 5ml   Cryovials
5801527Biorack 4800 Rack Assembly 5ml   Cryovials
5801426Biorack 6000 Rack Assembly 5ml   Cryocvials
5801639Biorack 3000 Rack Assembly Goblet   Straw Storage Rack
5801725Biorack 4800 Rack Assembly Goblet   Straw Storage Rack
5801723Biorack 6000 Rack Assembly Goblet   Straw Storage Rack
5801581Biorack 3000 Rack Assembly 50ml   Falcon Tubes
5801682Biorack 4800 Rack Assembly 50ml   Falcon Tubes
5801681Biorack 6000 Rack Assembly 50ml   Falcon Tubes
5801628Biorack 3000 Rack Assembly 96 Well   Plates (127x85x52)
5801727Biorack 4800 Rack Assembly 96 Well   Plates (127x85x52)
5801729Biorack 6000 Rack Assembly 96 Well   Plates (127x85x52)
5801555Biorack 3000 Rack Assembly 25ml Cord   Blood Bags
5801554Biorack 4800 Rack Assembly 25ml Cord   Blood Bags
5801553Biorack 6000 Rack Assembly 25ml Cord   Blood Bags
5801566Biorack 4800 Rack Assembly Blood Bags
5801487Biorack 6000 Rack Assembly Blood Bags
9902112Roller Base, Biorack 750
9902147Roller Base, Biorack   2400/3000/4800/5400/6000
9902136Neck Plug, Biorack 750
9702225Replacement Teflon sensor tube for   new style alarm neck plug Biorack 750
9702227Replacement Teflon sensor tube for   new style alarm neck plug Biorack 3000
9702155Biorack 750 Alarm Plug
9702229Replacement Teflon sensor tube for   new style alarm neck plug Biorack 6000
9702061Alarm Plug BR24K/30K/48K/54K/60K
9902148Neck Plug, Biorack   2400/3000/5400/6000
9702112Replacement Probe for Cryoguard alarm   (Old Units)
9701321Cryoguard with integral Data logger   & temprature display
8602622Cryoguard LN2 low level alarm, Mains   and Battery
8602620Replacement Probe for Cryoguard
