Statebourne Cryogenics 9902149-CB 85 Litres Capacity Biorack 3000 Refrigerators Complete with cord blood racks (no cassettes)
The Biorack series of refrigerators provide highly efficient storage of bulk quantities of cryovials. Racking systems housed within these ultra-low loss cryogenic refrigerators enable users to store large quantities of Biomedical material over long periods of time, safe in the knowledge that storage temperatures even in the vapour phase, will be below-190°C.
LN2 Capacity (litres) | 85 |
Evaporation Rate (%/day) | 0.63 |
Static holding time (days) | 1351 |
Weight Empty (Kg) | 42 |
Weight Full (kg) | 110 |
Neck Diameter (mm) | 216 |
Overall Height (mm) | 738 |
Overall Diameter (mm) | 646 |
Total 2ml Cryovial Capacity | 3000 |
Cryobox Format | 10x10 |

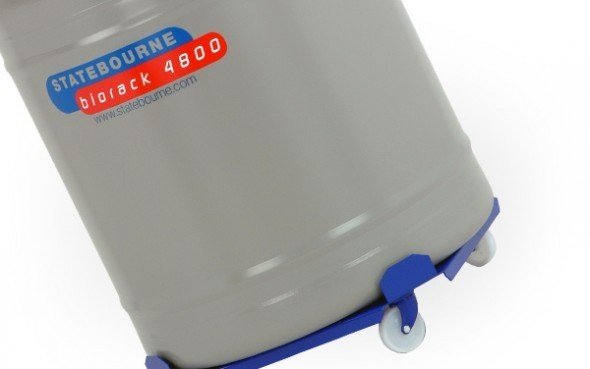

Biorack Series Ultra-Low loss storage refrigerators
Advanced super insulation and ultra high vacuum techniques allow storage times between refills of up to 6 months. The Biorack Series are available in four sizes, with 750, 3000, 4800 and 6000 x 2ml Cryovial capacities. All Bioracks are supplied complete with racks and polycarbonate cryoboxes.
Features
- 5 YEAR VACUUM WARRANTY
- 4 models from 750 to 6000 cryovial capacity
- Durable aluminium construction
- Space saving for storage of IVF samples
- Ultra-low evaporative losses
- Compatible with all major cryobox brands
- Heavy duty lockable enclosure offers excellent security
- Liquid or vapour phase option available
- Temperature data-logging device available
- Storage of 96 well plates, straws, 5ml tubes, blood bags, canes and cord blood bags
Temperature Logger Alarm Unit
Providing continuous dependable monitoring of the temperature within the refrigerator, the CryoGuard data logger is the ideal choice for users who want to record sample temperature over long periods.
The unit has an 3 way audible alarm for:
- Low LN2 Level
- High temperature
- Low battery power
Cryoguard
All Biorack Series units are available with an optional Cryoguard low level alarm, this fitted together with an alarm plug can be calibrated for both Liquid and Vapour phase low level alarm.
Autofill Option
The Autofill accessory option is particularly useful for the long-term storage of samples within vapour phase environments.
The system works by continuously monitoring the LN2 within the biorack and topping up the unit when natural evaporation causes the level to fall below a safe set-point,vital for the long term viability of the material being stored.
This method is less economical in terms of LN2 consumption but provides the user with the ability to finely control the level within the unit over extended periods of up to 8 weeks between supply reservoir refills.
Please note: The Auto-fill is not available for the Biorack 750 and also the Auto-fill requires fitting to a Cryostor supply tank, sold separately.
Part Number | Description |
6401238 | Biorack 750 neck/alarm plug wall bracket |
6401169 | Biorack 3000 ,4800,6000 neck/alarm plug wall bracket |
5801730 | Biorack 3000 Cane Storage Rack |
5801731 | Biorack 4800 Cane Storage Rack |
5801564 | Biorack 750 Rack Assembly 2ml Cryovials |
5801250 | Biorack 3000 Rack Assembly 2ml Cryovials |
5801525 | Biorack 4800 Rack Assembly 2ml Cryovials |
5801236 | Biorack 6000 Rack Assembly 2ml Cryocvials |
5801428 | Biorack 3000 Rack Assembly 5ml Cryovials |
5801527 | Biorack 4800 Rack Assembly 5ml Cryovials |
5801426 | Biorack 6000 Rack Assembly 5ml Cryocvials |
5801639 | Biorack 3000 Rack Assembly Goblet Straw Storage Rack |
5801725 | Biorack 4800 Rack Assembly Goblet Straw Storage Rack |
5801723 | Biorack 6000 Rack Assembly Goblet Straw Storage Rack |
5801581 | Biorack 3000 Rack Assembly 50ml Falcon Tubes |
5801682 | Biorack 4800 Rack Assembly 50ml Falcon Tubes |
5801681 | Biorack 6000 Rack Assembly 50ml Falcon Tubes |
5801628 | Biorack 3000 Rack Assembly 96 Well Plates (127x85x52) |
5801727 | Biorack 4800 Rack Assembly 96 Well Plates (127x85x52) |
5801729 | Biorack 6000 Rack Assembly 96 Well Plates (127x85x52) |
5801555 | Biorack 3000 Rack Assembly 25ml Cord Blood Bags |
5801554 | Biorack 4800 Rack Assembly 25ml Cord Blood Bags |
5801553 | Biorack 6000 Rack Assembly 25ml Cord Blood Bags |
5801566 | Biorack 4800 Rack Assembly Blood Bags |
5801487 | Biorack 6000 Rack Assembly Blood Bags |
9902112 | Roller Base, Biorack 750 |
9902147 | Roller Base, Biorack 2400/3000/4800/5400/6000 |
9902136 | Neck Plug, Biorack 750 |
9702225 | Replacement Teflon sensor tube for new style alarm neck plug Biorack 750 |
9702227 | Replacement Teflon sensor tube for new style alarm neck plug Biorack 3000 |
9702155 | Biorack 750 Alarm Plug |
9702229 | Replacement Teflon sensor tube for new style alarm neck plug Biorack 6000 |
9702061 | Alarm Plug BR24K/30K/48K/54K/60K |
9902148 | Neck Plug, Biorack 2400/3000/5400/6000 |
9702112 | Replacement Probe for Cryoguard alarm (Old Units) |
9701321 | Cryoguard with integral Data logger & temprature display |
8602622 | Cryoguard LN2 low level alarm, Mains and Battery |
8602620 | Replacement Probe for Cryoguard |
