Statebourne Cryogenics 9902132 Biorack 750 Refrigerators Complete with 2ml Racking and Cryoboxes

The Biorack series of refrigerators provide highly efficient storage of bulk quantities of cryovials. Racking systems housed within these ultra-low loss cryogenic refrigerators enable users to store large quantities of Biomedical material over long periods of time, safe in the knowledge that storage temperatures even in the vapour phase, will be below-190°C.



LN2 Capacity (litres) 35
Evaporation Rate (%/day) 0.30
Static holding time (days) 1171
Weight Empty (Kg) 19
Weight Full (kg) 47
Neck Diameter (mm) 120
Overall Height (mm) 747
Overall Diameter (mm) 480
Total 2ml Cryovial Capacity 750
Cryobox Format 5x5
Call 01463 830401 For Any Assistance

Biorack Series Ultra-Low loss storage refrigerators

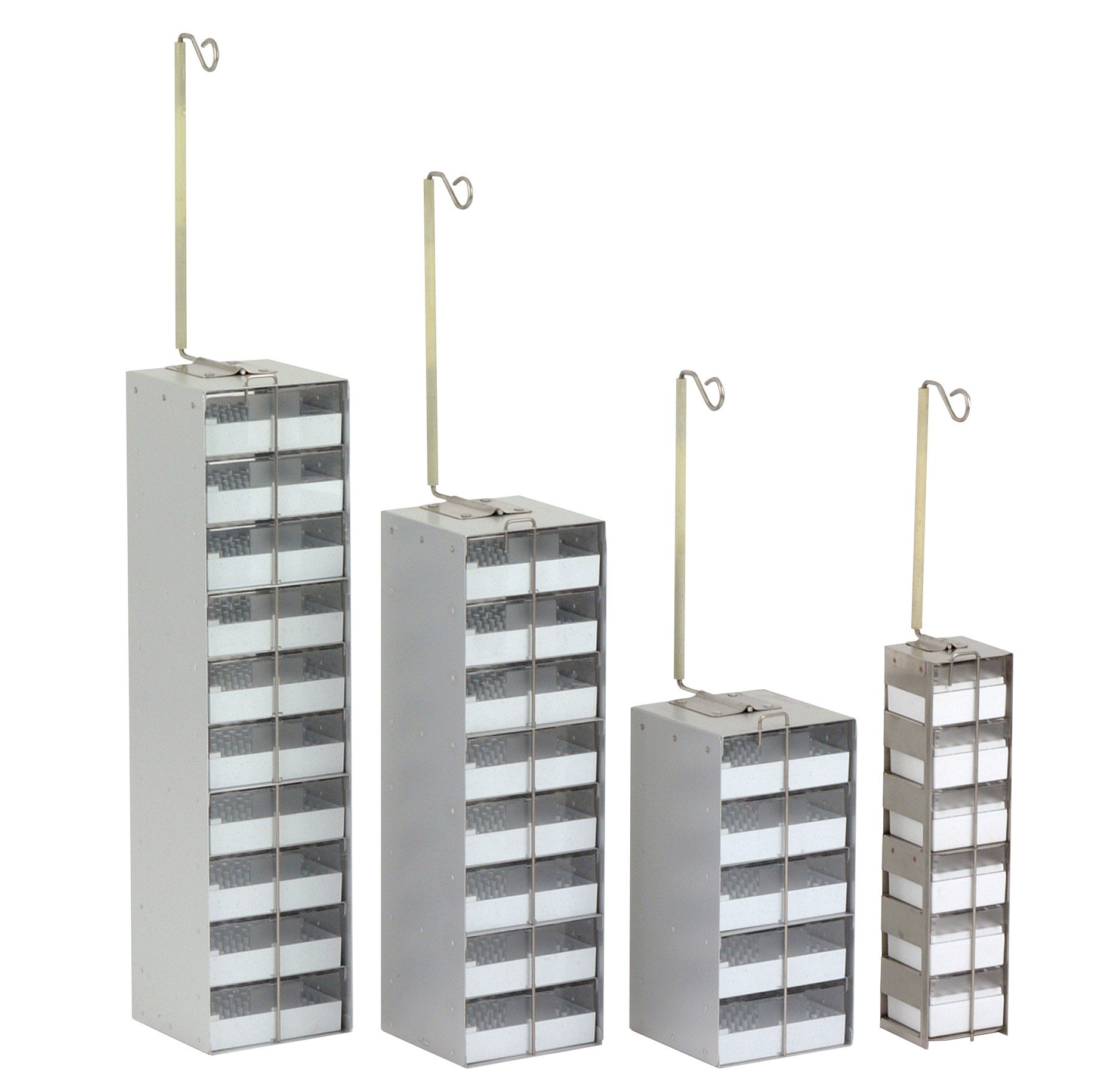

Advanced super insulation and ultra high vacuum techniques allow storage times between refills of up to 6 months. The Biorack Series are available in four sizes, with 750, 3000, 4800 and 6000 x 2ml Cryovial capacities. All Bioracks are supplied complete with racks and polycarbonate cryoboxes.

Features

  • 5 YEAR VACUUM WARRANTY
  • 4 models from 750 to 6000 cryovial capacity
  • Durable aluminium construction
  • Space saving for storage of IVF samples
  • Ultra-low evaporative losses
  • Compatible with all major cryobox brands
  • Heavy duty lockable enclosure offers excellent security
  • Liquid or vapour phase option available
  • Temperature data-logging device available
  • Storage of 96 well plates, straws, 5ml tubes, blood bags, canes and cord blood bags



Temperature Logger Alarm Unit

Providing continuous dependable monitoring of the temperature within the refrigerator, the CryoGuard data logger is the ideal choice for users who want to record sample temperature over long periods.

The unit has an 3 way audible alarm for:

  • Low LN2 Level
  • High temperature
  • Low battery power

Cryoguard

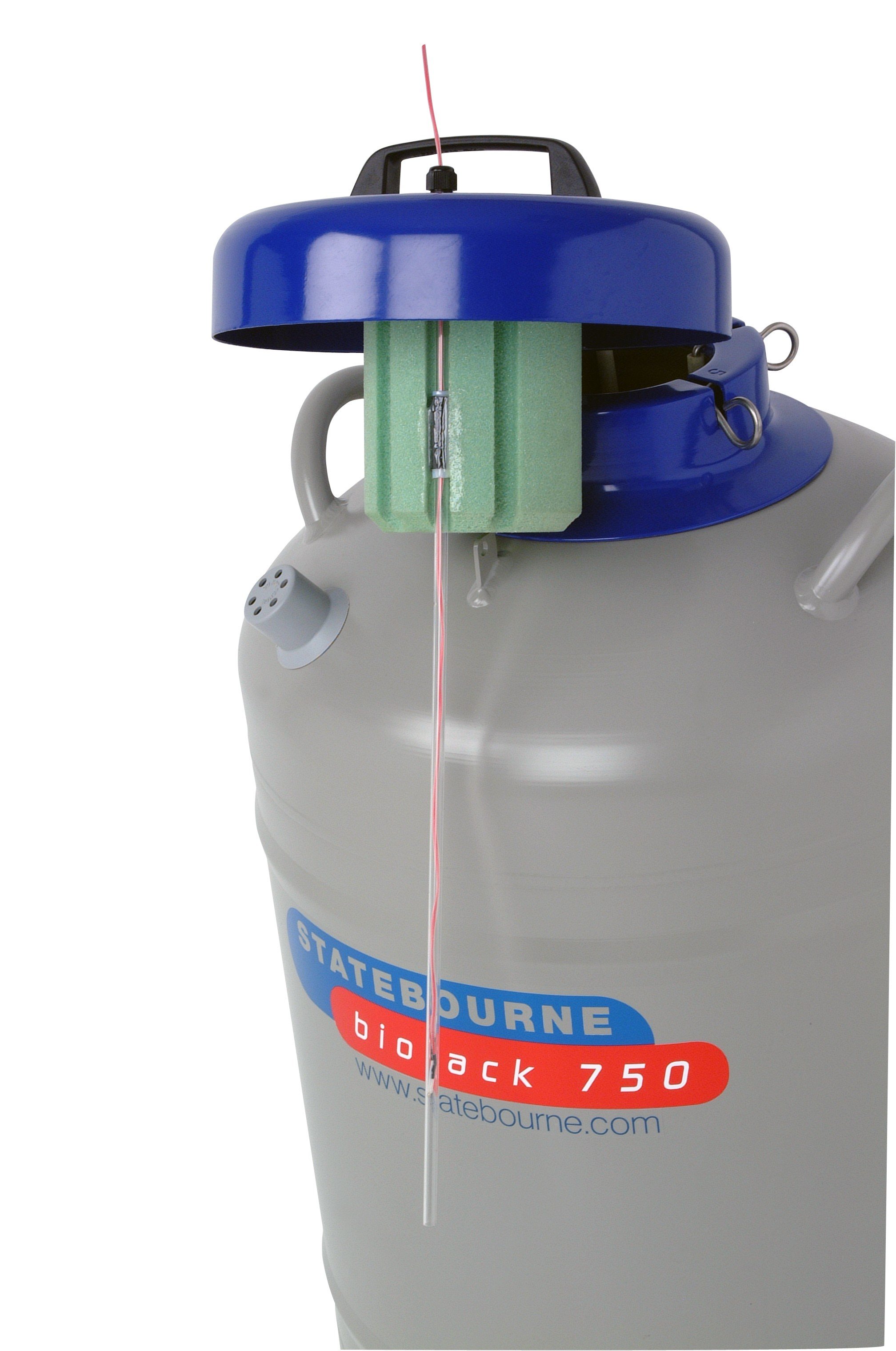

All Biorack Series units are available with an optional Cryoguard low level alarm, this fitted together with an alarm plug can be calibrated for both Liquid and Vapour phase low level alarm.

Autofill Option

The Autofill accessory option is particularly useful for the long-term storage of samples within vapour phase environments.

The system works by continuously monitoring the LN2 within the biorack and topping up the unit when natural evaporation causes the level to fall below a safe set-point,vital for the long term viability of the material being stored.

This method is less economical in terms of LN2 consumption but provides the user with the ability to finely control the level within the unit over extended periods of up to 8 weeks between supply reservoir refills.

Please note: The Auto-fill is not available for the Biorack 750 and also the Auto-fill requires fitting to a Cryostor supply tank, sold separately.

    • SKU
      9902132
  • Manufacturer
    Statebourne Cryogenics


Part Number Description


6401238 Biorack 750   neck/alarm plug wall bracket
6401169 Biorack 3000 ,4800,6000 neck/alarm   plug wall bracket
5801730 Biorack 3000 Cane Storage Rack
5801731 Biorack 4800 Cane Storage Rack
5801564 Biorack 750 Rack Assembly 2ml   Cryovials
5801250 Biorack 3000 Rack Assembly 2ml   Cryovials
5801525 Biorack 4800 Rack Assembly 2ml   Cryovials
5801236 Biorack 6000 Rack Assembly 2ml   Cryocvials
5801428 Biorack 3000 Rack Assembly 5ml   Cryovials
5801527 Biorack 4800 Rack Assembly 5ml   Cryovials
5801426 Biorack 6000 Rack Assembly 5ml   Cryocvials
5801639 Biorack 3000 Rack Assembly Goblet   Straw Storage Rack
5801725 Biorack 4800 Rack Assembly Goblet   Straw Storage Rack
5801723 Biorack 6000 Rack Assembly Goblet   Straw Storage Rack
5801581 Biorack 3000 Rack Assembly 50ml   Falcon Tubes
5801682 Biorack 4800 Rack Assembly 50ml   Falcon Tubes
5801681 Biorack 6000 Rack Assembly 50ml   Falcon Tubes
5801628 Biorack 3000 Rack Assembly 96 Well   Plates (127x85x52)
5801727 Biorack 4800 Rack Assembly 96 Well   Plates (127x85x52)
5801729 Biorack 6000 Rack Assembly 96 Well   Plates (127x85x52)
5801555 Biorack 3000 Rack Assembly 25ml Cord   Blood Bags
5801554 Biorack 4800 Rack Assembly 25ml Cord   Blood Bags
5801553 Biorack 6000 Rack Assembly 25ml Cord   Blood Bags
5801566 Biorack 4800 Rack Assembly Blood Bags
5801487 Biorack 6000 Rack Assembly Blood Bags
9902112 Roller Base, Biorack 750
9902147 Roller Base, Biorack   2400/3000/4800/5400/6000
9902136 Neck Plug, Biorack 750
9702225 Replacement Teflon sensor tube for   new style alarm neck plug Biorack 750
9702227 Replacement Teflon sensor tube for   new style alarm neck plug Biorack 3000
9702155 Biorack 750 Alarm Plug
9702229 Replacement Teflon sensor tube for   new style alarm neck plug Biorack 6000
9702061 Alarm Plug BR24K/30K/48K/54K/60K
9902148 Neck Plug, Biorack   2400/3000/5400/6000
9702112 Replacement Probe for Cryoguard alarm   (Old Units)
9701321 Cryoguard with integral Data logger   & temprature display
8602622 Cryoguard LN2 low level alarm, Mains   and Battery
8602620 Replacement Probe for Cryoguard
