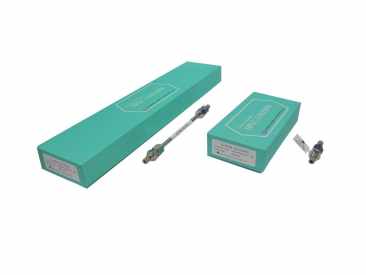

Shinwa Chemicals ULTRON ES-OVM-3 Chiral Separation Column, 50 × 2.1mm, 3um Particle Size
Features
- Maximum operating pressure of 30 MPa.
- Can be used in LC/MS systems as well.
- Employs a 3 µm packing material for higher peak resolution and theoretical plate numbers.
- Enables significant reductions in analysis times while maintaining high theoretical plate numbers.
- Enables further improvements in performance with optimization of LC system tubing and flow cells.
- 9 column length and inner diameter combinations available.
ULTRON ES-OVM-3 Lineup
Applications | Semimicro-LC | Semimicro-LC Conventional-LC |
Conventional-LC |
---|---|---|---|
Column Size Length x I.D. (mm) |
50 x 2.1 | 50 x 3.0 | 50 x 4.6 |
100 x 2.1 | 100 x 3.0 | 100 x 4.6 | |
150 x 2.1 | 150 x 3.0 | 150 x 4.6 |

The ULTRON ES series consists of columns designed specifically for chiral separations that employ chemically immobilized protein (ULTRON ES-OVM, ULTRON ES-PEPSIN, ULTRON ES-BSA) and cyclodextrin (ULTRON ES-CD, ULTRON ES-PhCD) stationary phases.
Applications
・Pharmaceuticals ・Pesticides ・Organic synthetic compounds
