Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers
ZoomCreated with Sketch.

Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers

Score: 5.00 (votes: 1)
No reviews.
Buddeberg GmbH



The Buddeberg ATEX Rated PLR Compressed Air Powered Laboratory Stirrers are high-performance laboratory stirrers specifically designed for use in hazardous environments where there is a risk of explosive atmospheres. These stirrers are ideal for chemical, pharmaceutical, or industrial labs dealing with volatile substances or areas with combustible dust or gases.

SKU Power Output Watt Maximum Volume (L) Viscosity mPas No-Load Speed (rpm) Torque Nm ATEX Code Type Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers 4026446002473 200 3 1000 15000 0.3 Ex II 2G Ex h IIC T4 Gb PLR 10 1900 £1222.00 1 + -
Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers 4026446002510 200 30 50000 1900 3.5 Ex II 2G Ex h IIC T5 Gb PLR 11 2000 £1377.00 1 + -
Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers 4026446002602 200 30 70000 1000 5.3 Ex II 2G Ex h IIC T5 Gb PLR 12 2100 £1733.00 1 + -
Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers 4026446003647 200 30 100000 580 10.4 Ex II 2G Ex h IIC T5 Gb PLR 28 2200 £1733.00 1 + -
Buddeberg ATEX Rated PLR 10 Compressed Air Powered Laboratory Stirrers 4026446002688 200 30 150000 80 19.8 Ex II 2G Ex h IIC T5 Gb PLR 13 2400 £2028.00 1 + -

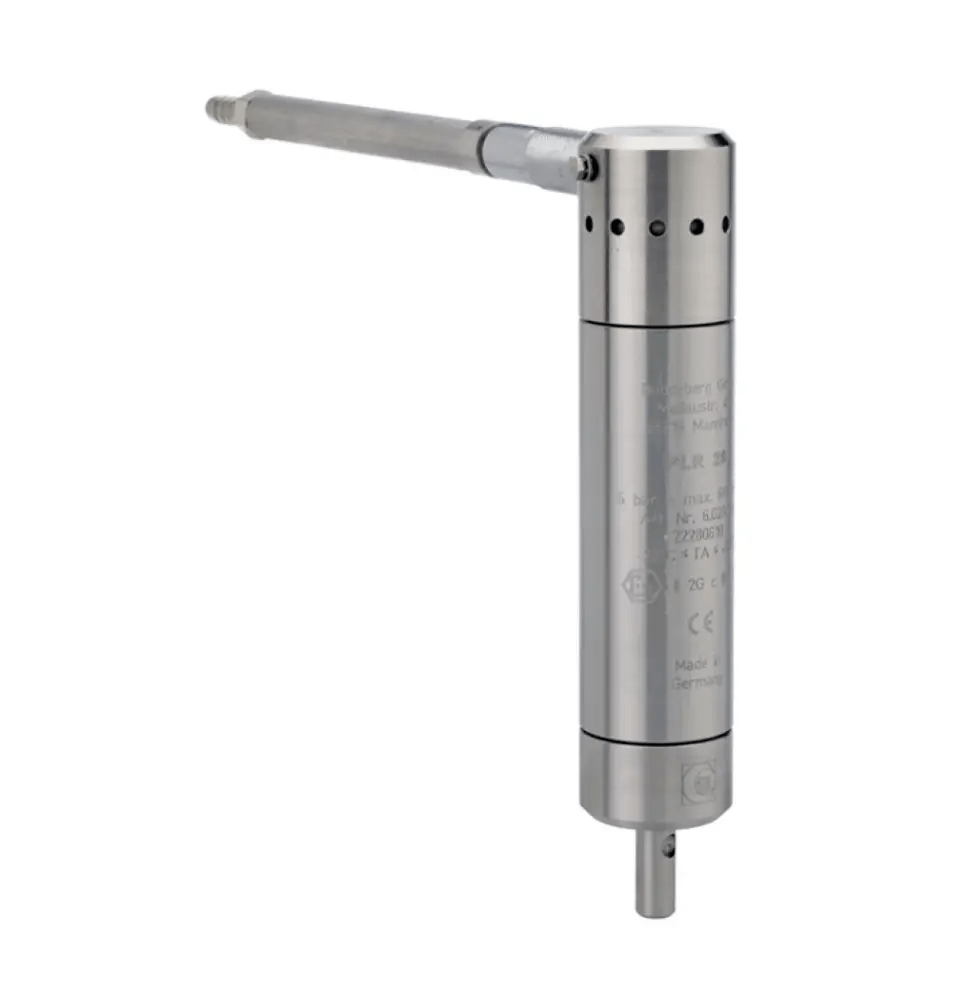

PLR compressed air laboratory stirrers are designed for all kinds of standard mixing tasks. The vane type, air-driven motor offers a high power density and is significantly lighter and smaller than an equivalent electric motor.

General specifications:

  • operating pressure max. 6 bar
  • air consumption 260 L/min. at 6 bar
  • power output 200 W at 6 bar
  • clockwise rotation
  • ATEX certification

Basic models include:

  • all-stainless steel housing
  • continuously adjustable speed control valve
  • support arm Ø 14 mm
  • plug-in connector DN 5
  • output shaft L x Ø 26 x 10 mm
    • Weight (In Grams)
      1900 g
    • SKU
      4026446002473
    • Commodity Codes
      84798200
  • Manufacturer
    Buddeberg GmbH
  • Country of Origin
    Germany
  • Power Output Watt
    200, Not Applicable
  • Maximum Volume (L)
    3, 30
  • Viscosity mPas
    1000, 50000, 70000, 100000, 150000
  • No-Load Speed (rpm)
    15000, 1900, 1000, 580, 80
  • Torque Nm
    0.3, 3.5, 5.3, 10.4, 19.8
  • ATEX Code
    Ex II 2G Ex h IIC T4 Gb, Ex II 2G Ex h IIC T5 Gb
  • Type
    PLR 10, PLR 11, PLR 12, PLR 28, PLR 13
