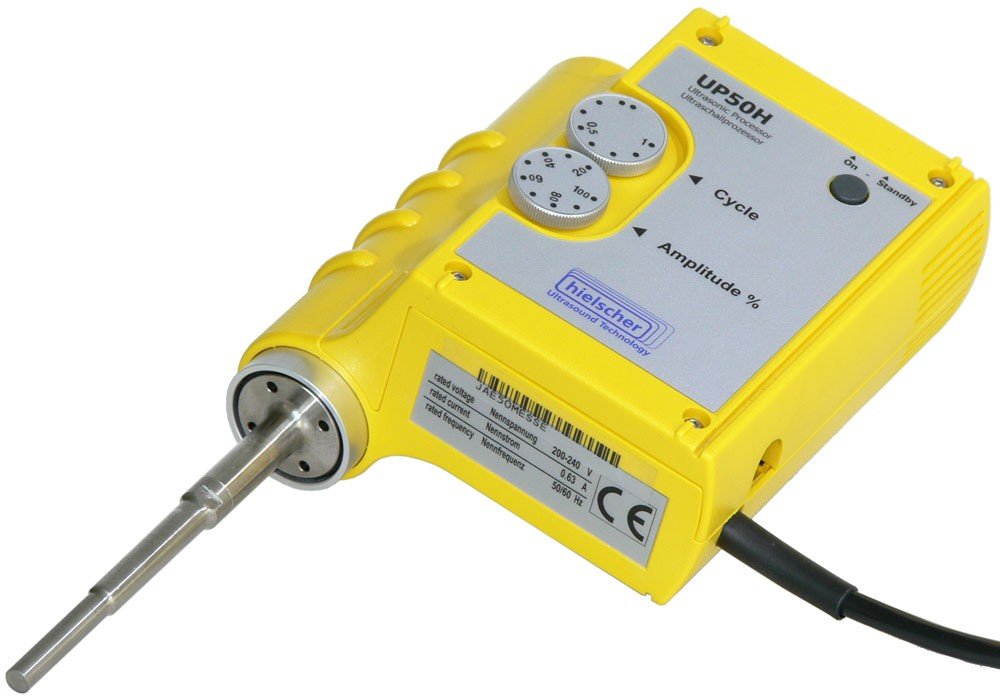

Hielscher Ultrasonics UP50H Handheld Ultrasonic Processor, Frequency 30kHz, Sample Volume 0.01 ml - 250 ml, Single Phase, 0.63A, 50-60Hz, 230V
The ultrasonic processor UP50H is typically used for the sonication of small lab samples. This homogenizer allows for the handheld or stand-mounted emulsification, dispersing, dissolving or cell disruption.
|sample volume||0.01 ml - 250 ml|
|frequency||30 kHz (auto-scan)|
|titanium horn||Ø 11 mm (max. amplitude at horn 44 µm)|
|power supply||200-240 V~ (0,63 A), 48-63 Hz|
also available as 100-130 V~ (1 A), 48-63 Hz
|set weight||1.1 kg|
for handheld operation or for stand use, 50 watts, ultrasonic frequency 30kHz, automatic frequency tuning system, amplitude adjustable from 20 to 100%, pulse adjustable from 0 to 100%, dry running protected, with 9-pin DSUB interface, in portable case, with stand holder for use with stand ST1-16 or sound protection box SB2-16, with mounting tools, IP40 grade, titanium horn with female thread M6x0.75 dimensions (LxWxH): 185x130x85mm, weight: 1.1k
The ultrasonic processor UP50H is typically used for the sonication of small lab samples. This homogenizer allows for the handheld or stand-mounted emulsification, dispersing, dissolving or cell disruption. The ultrasonic processor UP50H (50 watts, 30kHz) is the smallest model of our aesthetic laboratory devices, that are only supplied by Hielscher Ultrasonics in that compact form. The UP50H is used in particular in medical, biological or chemical laboratories, where small volumes need to be sonicated. Application fields are found mainly in the analytical field with applications such as the disruption of tissues, the cracking of bacteria or the homogenizing of samples in the food industry.
This device is perfectly suited for handheld operation with its lightweight 1.1kg, but it can also be operated at a stand. Generator and the transducer are combined in one unit, so there is only one cable. One power supply cord – that’s all. For volume samples from 10µL up to 250mL we offer various replaceable sonotrodes with diameters from 0.5 to 7mm. Further accessories such as flow cells made of stainless steel or glass, timers or our PC-control are part of our standard program. Click at the links below, to read more about the applications of our ultrasonic devices. emulsifying (mixing of immiscible liquids) dispersing (mixing of powders into liquids) homogenizing and disintegration cell disruption (lysis) and extraction deagglomeration of nanomaterials degassing
The UP50H can be used in combination with a flow cell D7K for the sonication of material in continuous flow, e.g. at 10 to 50mL/min. By this, you can simulate continuous sonication processes in smallest scale. For samples larger than 250mL we recommend using the UP100H (100 watts), UP200Ht (200 watts) or the UP400S (400 watts).
