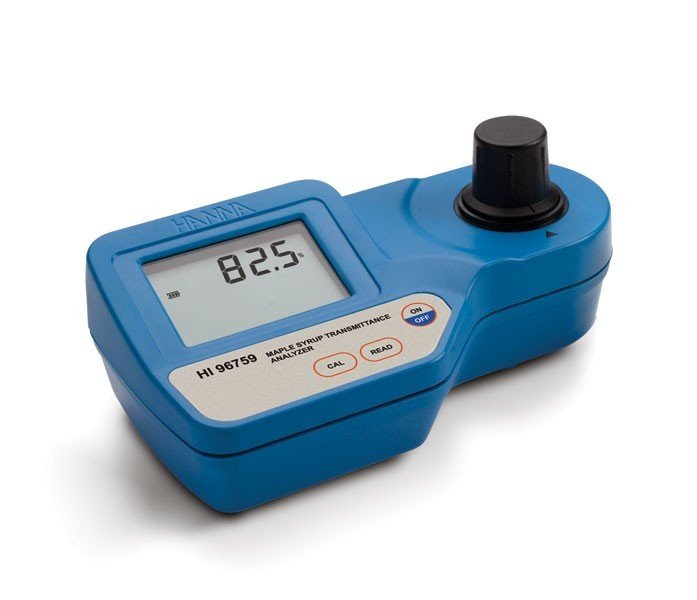

Hanna HI-96759 Maple Syrup Portable Photometer

Not rated yet

The HI-96759 handheld, portable maple syrup transmittance analysers are high precision photometers that bring judging by eye to an end. The grade of maple syrup can be determined by using the photometer to measure how much light is transmitted through the syrup at a particular wavelength, thus dictating its quality and strength.

Water Resistant – Can withstand temporary exposure to water, but should not be submerged or washed under running water.Battery powered – Allows use away from a power source. Batteries are included with all battery operated products.


Range0.0 to100.0% transmittance
Resolution0.1% transmittance
Precision±1% to 75% transmittance
Light SourceTungsten lamp
Light DetectorSilicon photocell with narrow band interference filter 560 nm
Environment0 to 50°C (32 to 122°F); RH max 95% non-condensing
Power Supply(1) 9V battery
Auto-offAfter 10 minutes of non-use
Dimensions193 x 104 x 69 mm
MethodDirect Measure
Ordering information:The HI-96759 is supplied with square cuvettes (6), light shield cap, 5ml syringes (2), 30ml bottle of glycerol, cuvette wiping cloth, 9v battery, instrument quality certificate, instruction manual and rigid carrying case.
Solutions and accessories (sold separately)HI-93703-57 Glycerol (4), 30ml; HI-93703-50 Cuvette cleaning solution, 230ml; HI-93703-56 consists of 82 matched square cuvettes, glycerol standard (30ml) and 5ml syringes (2) (75 tests average)
Price Upon Application Or Discontinued

The HI-96759 is a handheld maple syrup transmittance analyser that has a tungsten lamp with a narrow band interference filter to isolate the 560nm wavelength.

The photometer uses 10mm disposable sample cuvettes and is calibrated to 100% transmittance with a glycerol standard. All samples are compared to the glycerol standard and readings are displayed as % transmittance. With its advanced optical system, the highly precise meter eliminates subjectivity to provide readings that are accurate and repeatable.

When choosing a maple syrup, it is important to consider its clarity along with colour and taste - a light, clear syrup has a high level of quality and is indicative of a very pure product. A dark, cloudy syrup is less desirable, owing to the presence of impurities and suspended solids.

In general, maple syrup is classified into different standards based on colour and clarity. Lighter, clearer syrups are produced earlier in the season, while darker syrups are produced later in the season. The lightest grade is characterised by its very pale colour and has a light transmittance equal to or greater than 75%. The darkest grade has a light transmittance of less than 25%. The grade of maple syrup can be determined by using a photometer that measures how much light is transmitted through the syrup at a particular wavelength.

Order Information:

HI-95759 are supplied with hard carrying case, square, sample cuvets (5), 9V battery,light shield cap (1), 5 mL syringes (2), 30 mL glycerol (1) and instruction manual.

    • SKU
  • Manufacturer
    Hanna Instruments Ltd
