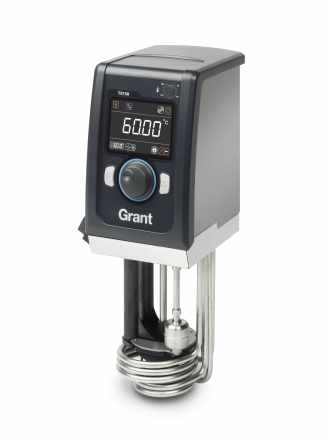

Grant Instruments Advanced Optima TX150 Heated Circulating Bath
 |
 |
Grant Instruments Advanced Optima TX150 Heated Circulating Bath
is a high-performance laboratory tool designed for precise temperature control and circulating liquid heating. It is commonly used for applications that require accurate and stable heating, such as chemical reactions, sample preparation, and other scientific procedures

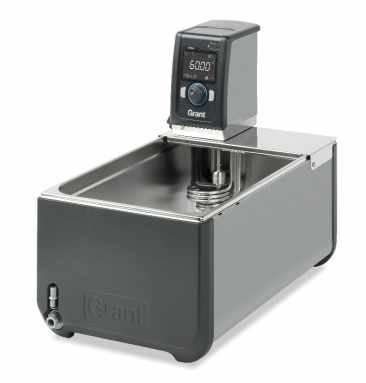

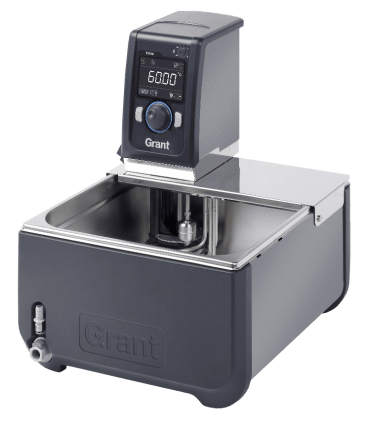

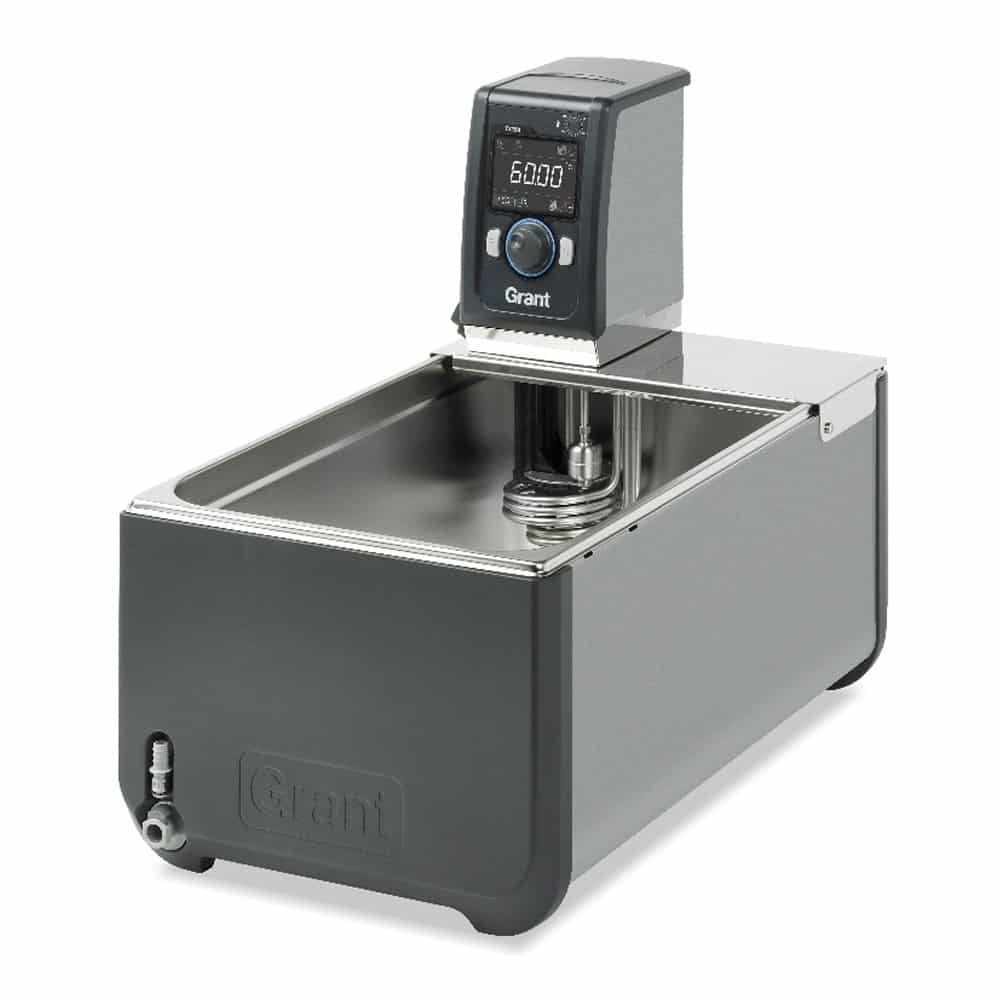

The TX150 Series of advanced digital thermostats offer excellent temperature stability and temperature control for demanding applications in the range of -15°C to 150°C. The TX150 heating circulator can be used in combination with any Grant stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical-sided tank.
- Cooling/heating range -15°C to 150°C
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- Low-liquid detection (float switch)
- 5-point user calibration
- Easy to program via interface or remotely via PC / Laptop with Labwise® software
Applications
- University research – temperature control of external equipment such as electrophoresis tanks or jacket vessels
- Industrial labs – temperature probe calibration
Specifications
| Dimensions (h x d x w) | 342 x 172 x 141mm |
| Stability (DIN 12876) @70ºC | 0.01±ºC |
| Uniformity (DIN 12876) @70ºC | 0.05±ºC |
| Setting resolution | 0.1ºC |
| Display | Full colour QVGA TFT |
| Timer function | 1 minutes to 99 hours 59 minutes |
| No. of temperature presets | 3 |
| Re-calibration points | 5 |
| Socket for external probe (TXPEP, TXSEP) | • |
| Communications interface | USB, RS232 |
| Programmable | Remote via PC/laptop 1 program/30 |
| Relays | 1 |
| Safety – over temperature | Adjustable cut-out |
| Fluid level – float | • |
| Language options | EN, FR, DE, IT, ES |
| Alarms (can be configured to switch a relay) | High and low |
| Heater power – 230V | 1840W |
| Heater power – 120V | 1445W |
| Electrical power – 230V | 2000 (50-60Hz) |
| Electrical power – 120V | 1500 (50-60Hz) |
| Height above tank rim | 200mm |
| Depth below tank rim | 145mm |
| Maximum pressure (water) | 310mbar |
| Maximum flow (water)310mbar | 18L/min |
| Pump connector | Fits 9mm inner diameter tubing |
| Pump connector | Fits 15mm inner diameter tubing |
| Weight | 2.6kg |
