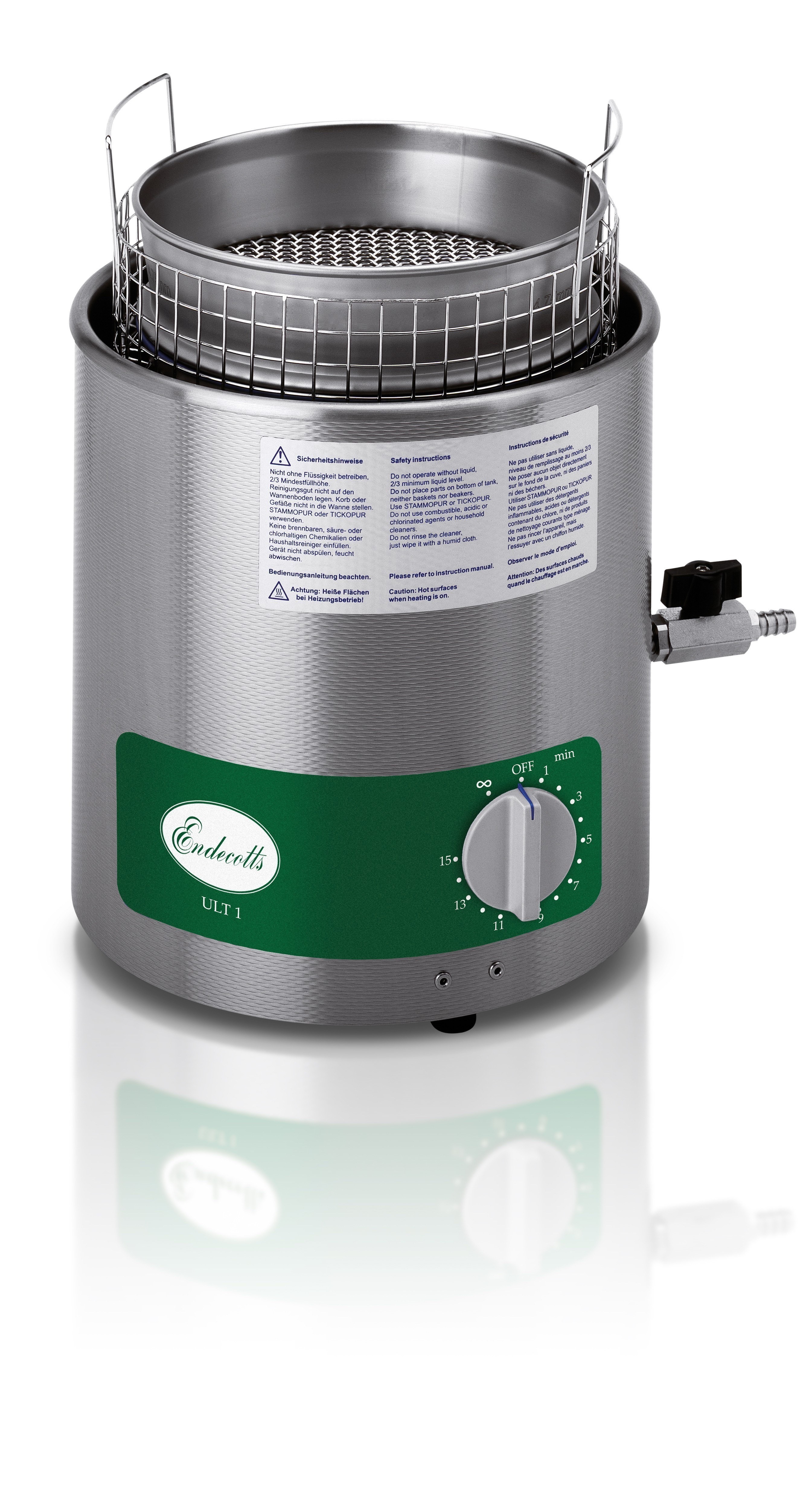

Endecotts’ ultrasonic cleaner has been specially designed for cleaning test sieves and is also suitable for general laboratory use.
Sieves should be cleaned after each analysis and replaced in their storage containers. Most of the "near mesh size" particles which block the apertures can usually be removed by inverting the sieve and gently tapping the frame. If this fails t he underside of the mesh may be stroked gently with an Endecotts sieve brush specially designed for use on test sieves with apertures over 1 mm.
For sieves with smaller apertures and almost any other application the most efficacious method is the use of an ultrasonic cleaner.
Specifications
Application | cleaning, dispersion, degassing |
Batch size / feed quantity* | 1 sieve 200 x 50 mm, 8" x 2" |
Time setting | 0 - 15 min |
Container volume | 5.7 l |
Oscillating tank Ø x H / W x H x D | 24.5 x 13 cm |
HF continuous maximum output | 35 kHz, 2 x 240 W |
Electrical supply data | different voltages available |
Power connection | 1-phase |
W x H x D | |
Ø x H / W x H x D | 260 x 260 mm |
Net weight | ~ 5 kg |
Advantages
- It is easy to operate and extremely efficient to use.
- The all stainless steel construction is ergonomically designed to give a long, trouble free life.
- The ultrasonic cleaner is environmentally friendly, operating on 5.7 litres of organic solvent free water. It is equipped with 4 high frequency transducers 35 KHz at 2 x 240 W.
- A sieve up to 200 mm or 8" in diameter is placed in the basket in order to commence with the cleaning procedure.
- The control panel enables the user to set the operating time. Cycle time: 0-15 minutes or continuous.
