Certoclav Vacuum Pro 12 and 22 Front Loading Touch Series Autoclaves

Score: 5.00 (votes: 1)
No reviews.
CertoClav Sterilizer GmbH
authoriseddistributor.png ezgif-2-bbd2100077_e4ca16fae1ae75348ca4916c5e80a7b7.png

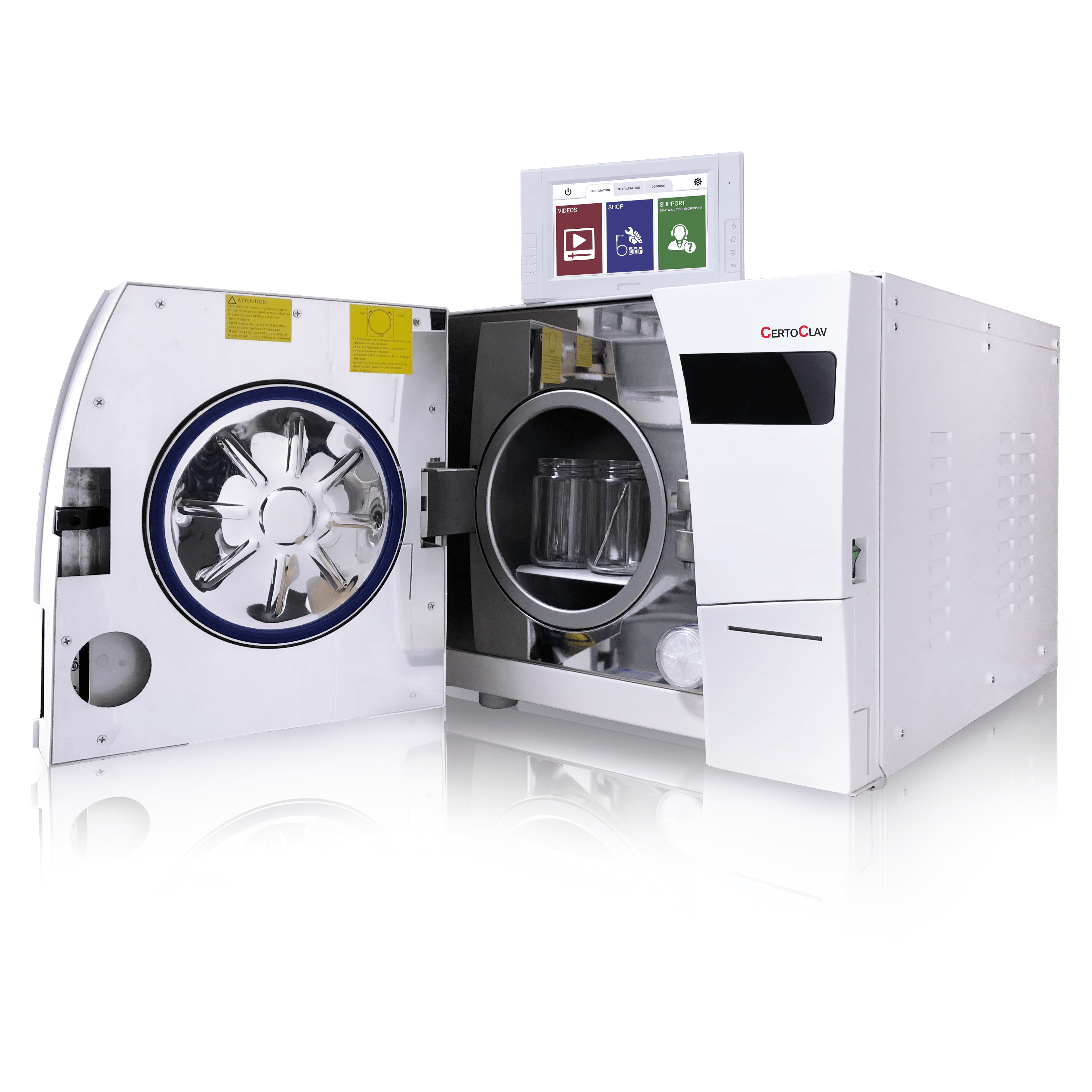

The CertoClav Vacuum Pro 12 & 22 are advanced vacuum autoclaves designed for sterilizing medical and laboratory equipment with enhanced performance and versatility. These models are part of the CertoClav range, which is known for producing high-quality, reliable autoclaves used in various industries for sterilization. The Vacuum Pro 12 and Vacuum Pro 22 specifically offer features that focus on improving sterilization efficiency, particularly for porous and hard-to-sterilize items.


Scope of delivery:
Product set CertoClav VacuumPro & CertoTouch screen, including

  • Instrument Tray
  • Power Cable
  • CertoCloud Basic License
SKU Chamber Volume (L) Chamber Material Maximum Sterilisation Temperature Chamber Diameter Dimensions (mm) Maximum Operating Pressure Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
CertoClav VacPro 12 8500487 12 Stainless Steel 304L 134°C 200 x 360 230 kPa 51000 £5098.00 1 + -
CertoClav VacPro 22 8500489 22 Stainless Steel 304L 134°C 250 x 450 230 kPa 55000 £5635.00 1 + -

Thanks to the preheatable chamber, cooling-ventilation, and vacuum pump, the laboratory autoclaves of the CertoClav Vacuum Professional series makes short cycle times of approx. 20 minutes possible, including drying time. Due to the intelligent combination of vacuum, pressure and steam, the CertoClav Vacuum Pro 12 and CertoClav Vacuum Pro 22 are suitable for solids of all materials as well as hollow bodies. The additional media sensor guarantees a complete sterilization of liquids such as culture media.

The 7-inch, robust, high-resolution touchscreen, the CertoTouch, offers an intuitive operation. All operationg steps are explained with training videos directly on the CertoTouch. The autoclaves can be connected to the free CertoCloud. This offers fully automatic logging, remote maintenance and notification function for PC, tablet or smartphone. This allows maintenance
personnel to be notified by e-mail or SMS.

With its predefined standard programs, repeat function, automatic documentation and short sterilization cycles, the laboratory autoclaves CertoClav Vacuum Pro 12 und CertoClav Vacuum Pro 22 make everyday laboratory work much easier.

Ideal for material tests, quality control and class B program cycles, as well as for culture media preparation, sterilization of waste, sterilization of waste in disposal bags, unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, rubber, textiles, packaged instruments, porous materials, and hollow bodies type A and type B (pipettes, empty
glassware, vials and tubes) according to EN 13060.

Important Features

  • 11 preinstalled programs, freely editable
  • up to 50 user-definable programs in 3 different types (solid, liquid, test) can be freely created
  • Vacuum pump - Made in Germany
  • Flexible media sensor PT1000
  • Water quality sensor
  • 7“ touchscreen with video assistant
  • Automatic documentation
  • RS232, RS485, USB, SD card
  • Ethernet, LAN, WiFi
  • Cloud Connection
  • GMP/GLP compliant



Technical Data:

Chamber Volume 12 Litres 22 Litres
Fresh Water Tank Volume 2.3 Litres 4.5 Litres
Waste Water Tank Volume 2.1 Litres 4 Litres
Chamber Diameter 20cm 25cm
Chamber Depth 36cm 45cm
Chamber Material 304L Stainless Steel 304L Stainless Steel
Maximum Operating Pressure 230 kPa 230 kPa
Main Connections 220 V ±10 %/50 - 60 Hz 220 V ±10 %/50 - 60 Hz
Heating Capacity 2400 W 2400 W
Programmable Operating Temperature 134 °C 134 °C
Net Weight 51 Kg 55 Kg
Product Dimensions (L x W x H) mm 500 x 610 x 430 500 x 650 x 430





Why Vacuum Pro?

All-in-One: for the sterilization of solids and liquids

Safe: reliable sterilization thanks to integrated media sensor

Fast: short sterilization cycles from 20 minutes

Programmable: saving time through standard programs and automatic repeat function

Reliable: robust technology, high-quality components from brand manufacturers, vacuum pump Made in Germany

Documentation: automatic documentation via CertoCloud, GLP-conform


Technical features

Performance: sterilization temperature 105 ° C to 134 ° C, maximum operating pressure 230 kPa

Method: vacuum, pressure, steam

Volume: 12 / 18 / 22 / 45 liter

Control: via the 7" touchscreen or the CertoCloud web interface

Water supply: integrated water tank / by water connection (with RO system)

Programs: 10 standard programs for solids and liquids, all parameters editable

Automation: hundreds of sterilization cycles in a row - fully automatic - without user interaction, ideal for material testing

Programmable

  • select from a number of predefined standard programs, all parameters can be adjusted for optimal sterilization
  • the automatic repeat function allows material testing with any number of sterilization cycles without user interaction. With the included CertoCloud software every single cycle can (even remotely) be monitored in real time and logged. The notification function informs the user via SMS or email when the process has completed.

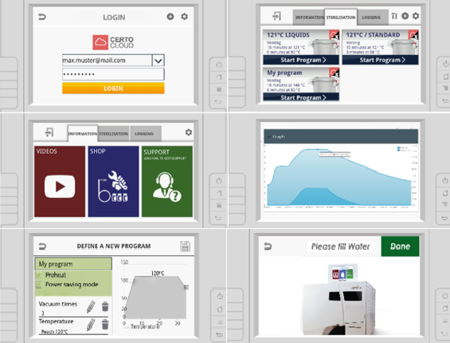

7'' Touchscreen

  • user management
  • program selection and start
  • program editor
  • information and training portal
  • log viewing
  • integrated step-by-step-video-assistant

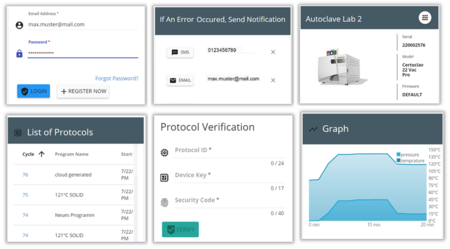

CertoCloud - autoclave management software

·         access data from your autoclave in real-time, even remotely

·         configure SMS and E-Mail notifications

·         view protocols and export them to signed PDF, Excel or ZIP

·         confirm the authenticity and validity of printed out protocols with a few clicks




Sterilization of solids

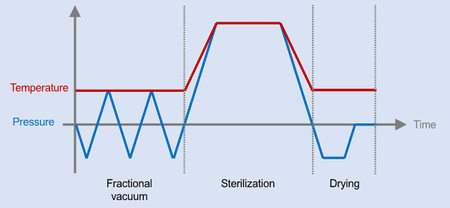

  • all sterilization programs for solids follow a typical Class-B cycle
  • precise combination of vacuum, pressure and temperature for optimal sterilization of solids
  • the fractionated vacuum presses the saturated water vapor through the sterilization package and into each microscopic gap


Sterilization of liquids

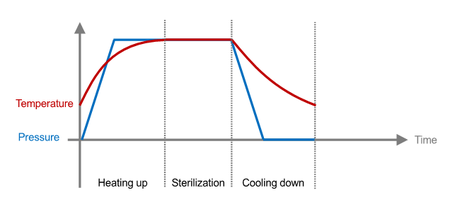

  • all sterilization programs for liquids follow a heating phase with venting followed by a sterilization phase and a final cooling phase
  • sterilize liquids at 121°C for 20 minutes
  • the integrated media sensor measures the real temperature of liquids and ensures an optimum sterilization result
    • Weight (In Grams)
      51000 g
    • SKU
      8500487
    • Commodity Codes
      8419200
  • Manufacturer
    CertoClav Sterilizer GmbH
  • Chamber Volume (L)
    12, 22
  • Chamber Material
    Stainless Steel 304L, Not Applicable
  • Maximum Sterilisation Temperature
    134°C, Not Applicable
  • Chamber Diameter Dimensions (mm)
    200 x 360, 250 x 450
  • Maximum Operating Pressure
    230 kPa, Not Applicable

Microbiology/Bio Chemistry

  • Autoclave culture mediums
  • Refuse sterilisation
  • Efficiently processes small amounts – just in time

Food Industry

  • The complete autoclave solution for laboratories in the food processing industry
  • Sterilisation of utensils and refuse
  • Culture medium preparation

Material Testing

  • Testing for vapour resistance and material quality
  • Long running cycles, ICP-TM 650, HAST test, pressure vessel test, hydrolysis, GLB-AL 631
  • Special fabrications available upon request
  • CertoClav MultiControl with a freely programmable electronic control

Schools and Universities

  • Robust autoclave, ideal for daily training operation

Pharmacy

  • Sterilisation of instruments and packaging (i.e. eyedrop bottles and liquids)
