Certoclav Connect Fully Automatic Programmable Autoclave
 |
 |
The Certoclav Connect Fully Automatic Programmable Autoclave is a high-performance autoclave designed for efficient, automated sterilization in medical, laboratory, and industrial settings. As a fully automatic device, it offers advanced features to ensure safe, precise, and reliable sterilization with minimal manual intervention
Scope of delivery:
Product set of CertoClav Connect & CertoTouch Screen, including
- Instrument Tray
- Flexible Media Sensor
- Power Cable
- CertoCloud basic license
The fully automated including documentation
CertoClav Connect is a fully automated laboratory autoclave that requires no prior training. It is operated by means of a 7“- high resolution touch screen, the CertoTouch. All operating steps are explained with training videos directly on the touch screen. The software provides user management for comprehensive documentation of operation. Individual programs can be generated directly at the touch screen.
When the device is connected to the Internet via WLAN, it automatically connects to the CertoCloud via a secure line. This allows all protocols to be accessed via a browser, and customized programs to be created and sent to the devices. Programs created directly on the device are synchronized as well. Thanks to the automated documentation of users and cycles, the CertoClav Connect meets all GLP requirements.
Ideal for extended/ long- term cycles and material tests like GSB AL 631, HAST Test, Pressure Cooker Test und IPC-TM 650, as well as for culture media preparation, sterilization of waste, unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, and rubber.
Important Features
- fully automated
- automatic venting
- electric exhaust valve
- optional flexible media sensor
- Time and temperature can be selected individually
- Controller with LCD display
- Venting by fractional flow procedure
- Ethernet, LAN, Wi-Fi
- 7" Tablet with video assistant
- Cloud Connection
- Heating integrated in the base
- electronic safety interlock
Technical Data:
| Operating Temperature |
Free programmable (from 20°C up to 140°C, 1 minute to 30 days) |
| Air Evacuation | Fully automatic |
| Chamber Volume | 18 Litres |
| Chamber Depth | 35 cm |
| Chamber Diameter | 26 cm |
| Chamber Material | 316L Stainless Steel |
| Maximum Operating Pressure | 2.7 bar |
| Mains Connection | 230Vac 50Hz |
| Heating Capacity | 1300W |
| Net Weight | 16 Kg |
| Product Dimensions (L x W x H) mm | 480 x 380 x 540 |
-
ManufacturerCertoClav Sterilizer GmbH
-
Country of OriginAustria
-
Chamber Volume (L)18, Not Applicable
-
Chamber MaterialStainless Steel 316L, Not Applicable
-
Maximum Sterilisation Temperature20 °C To 140 °C, Adjustable, Not Applicable
-
Chamber Dimensions (mm)260 x 350, Not Applicable
-
Maximum Operating Pressure2.7bar, Not Applicable

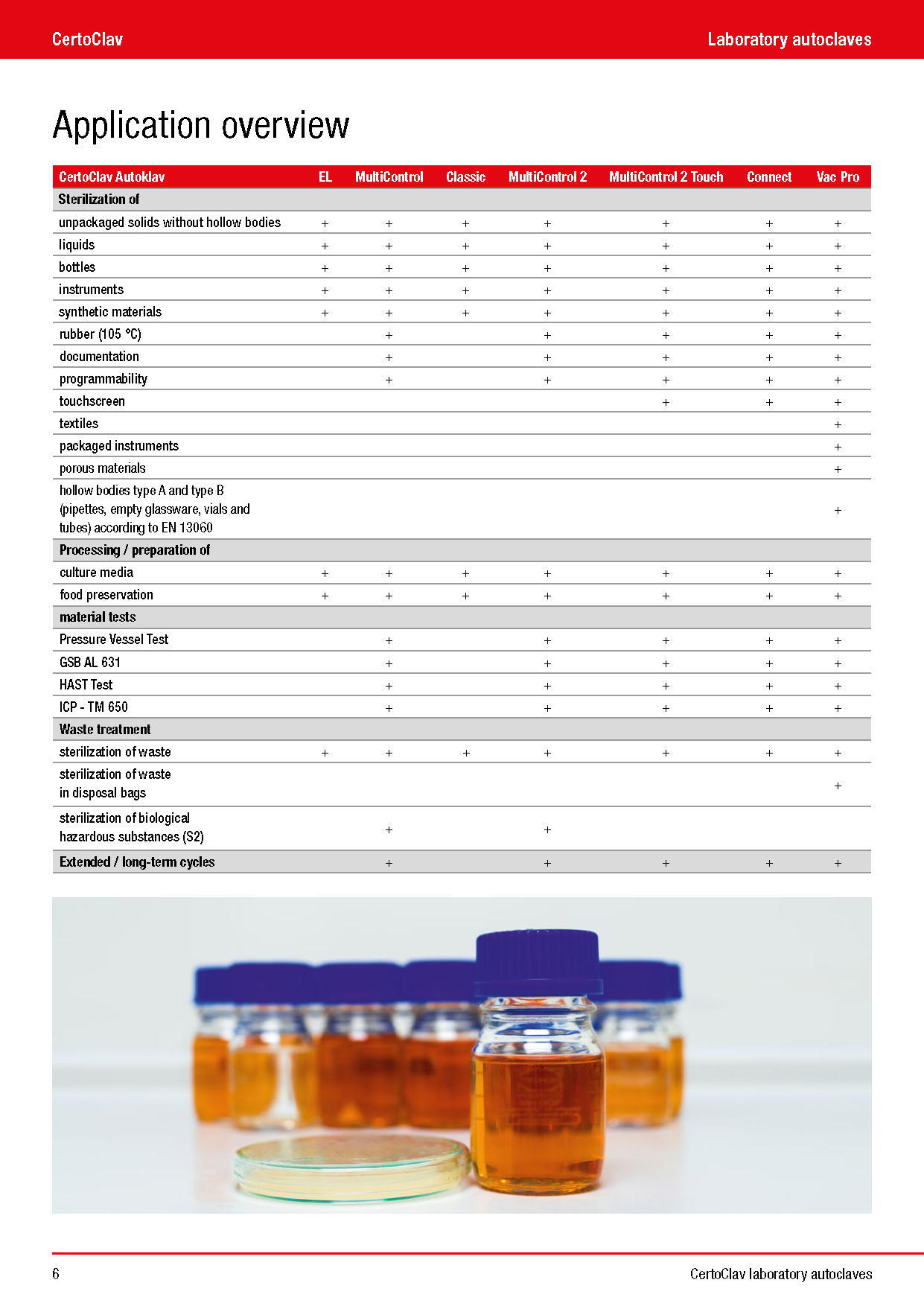

Microbiology/Bio Chemistry
- Autoclave culture mediums
- Refuse sterilisation
- Efficiently processes small amounts – just in time
Food Industry
- The complete autoclave solution for laboratories in the food processing industry
- Sterilisation of utensils and refuse
- Culture medium preparation
Material Testing
- Testing for vapour resistance and material quality
- Long running cycles, ICP-TM 650, HAST test, pressure vessel test, hydrolysis, GLB-AL 631
- Special fabrications available upon request
- CertoClav MultiControl with a freely programmable electronic control
Schools and Universities
- Robust autoclave, ideal for daily training operation
Pharmacy
- Sterilisation of instruments and packaging (i.e. eyedrop bottles and liquids)
