Buchi 051998 Melting Point M-565 + Sample Loader M-569 , Ambient + 10 °C to 400 °C, 3 Positions for melting capillaries
The video camera equipped Melting Point M-565 for the automatic determination of melting and boiling points is designed for true, professional quality control. It includes a color display to observe the phase transition and a video function which allows for review of the determination. The Sample Loader M-569 allows a homogenous packing of capillaries providing highly reproducible results.
Technical data
- Positions for melting capillaries 3
- Positions for boiling capillaries 1
- Precision magnifying lens 1
- Magnification of lens 2.5 x
- Display Colour, TFT, 320 x 240, 3.5˝
- Determination temperature range Ambient Ambient + 10 °C to 400 °C
- Temperature resolution 0.1 °C
- Accuracy of the oven temperature at 0.5 °C/min up to 250 °C ± 0.3 °C 250 °C to 400 °C ± 0.3 °C to ± 0.5 °C
- Repeatability of melting point at 0.5 °C/min ± 0.1 °C
- Accuracy of boiling point at 1.0 °C/min up to 400 °C ± 0.5 °C
- Temperature gradients, °C/min 0.1, 0.2, 0.5, 1, 1.5, 2, 2.5, 3, 5, 10, 20
- Heat-up time (50 °C – 350 °C) at 25 °C ~ 4 min Cool-down time (350 °C – 50 °C) at 25 °C ~ 13 min
- Electrical supply 100 – 240 V (± 10%) 50 – 60 Hz
- Power consumption 150 W
- Storable methods for melting point 50
- Storable methods for boiling point 50
- Compliant with Pharmacopeia methods PH. EUR., USP and JP
- Interfaces 1 x PS/2 1 x RS232 1 x USB
- Languages en / de / fr / it / es / ja / cn
The Melting Point M-565 for the automatic determination of melting and boiling points is designed for true, professional quality control. It includes a color display to observe the phase transition, is equipped with a video camera and a video replay function which allows reviewing the melting and boiling point determination.
Benefits
Accurate
- Fail-safe calibration with automated determination and storage of calibration results
- Automatic determination of melting and boiling points
- Highly accurate temperature regulation and measurement
- Optimized reproducibility with homogeneous packing of the capillary using the Sample Loader M-569
Flexible
- Control of almost any type of sample by measuring melting point, boiling point or slip melting point.
- Double check of difficult samples by comparing manual and automated measurement
- Observation and replay of the phase transition using color display and video recording
- Optional PC software for easy management of methods and results
Compliant
- Compliant with Pharmacopeia methods (European, USP, Japanese)
- Comprehensive IQ/OQ procedures including certified calibration and verification compounds for GLP/GMP laboratories.
Features
Video movie
Video movie of every determination allows the look at the results after the measurement. Variable speed from single picture slow motion to fast motion up to 100x help to analyse the entire process in an efficient way.
Sample determination
Three different samples can be determined simultaneously. The user watches the samples on the display panel through a 2.5 magnifying glass for precise determination, detects the start and completion of melting and stores the values by pressing a button. The optimized design of the heating block allows faster cooling times and as a result a higher throughput per hour.
Heating block
Optimized design of the heating block allows faster cooling times and therefore higher samples throughput per hour.
Display
A brilliant large colour display with a high resolution guarantees a comfortable control of the instrument and helps you to determine melting points in a most efficient way.
Calibration
Fully menu guided calibration in combination with the BUCHI Calibration Standards enable high quality calibrations.
Sample Loader M-569
For fast and efficient loading of samples into BUCHI melting Point capillaries.

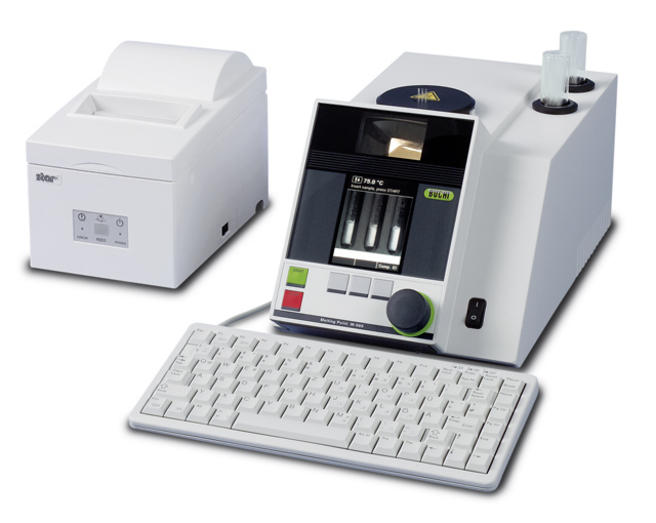

Printer and Keyboard
The optional Printer is for GLP/GMP-conform documentation of results of calibration, melting and boiling point determination. The optional Keyboard can be used for a fast input of sample parameters.
MeltingPoint Monitor Software
Optional MeltingPoint Monitor Software for an easy and save management of users, methods and results.
