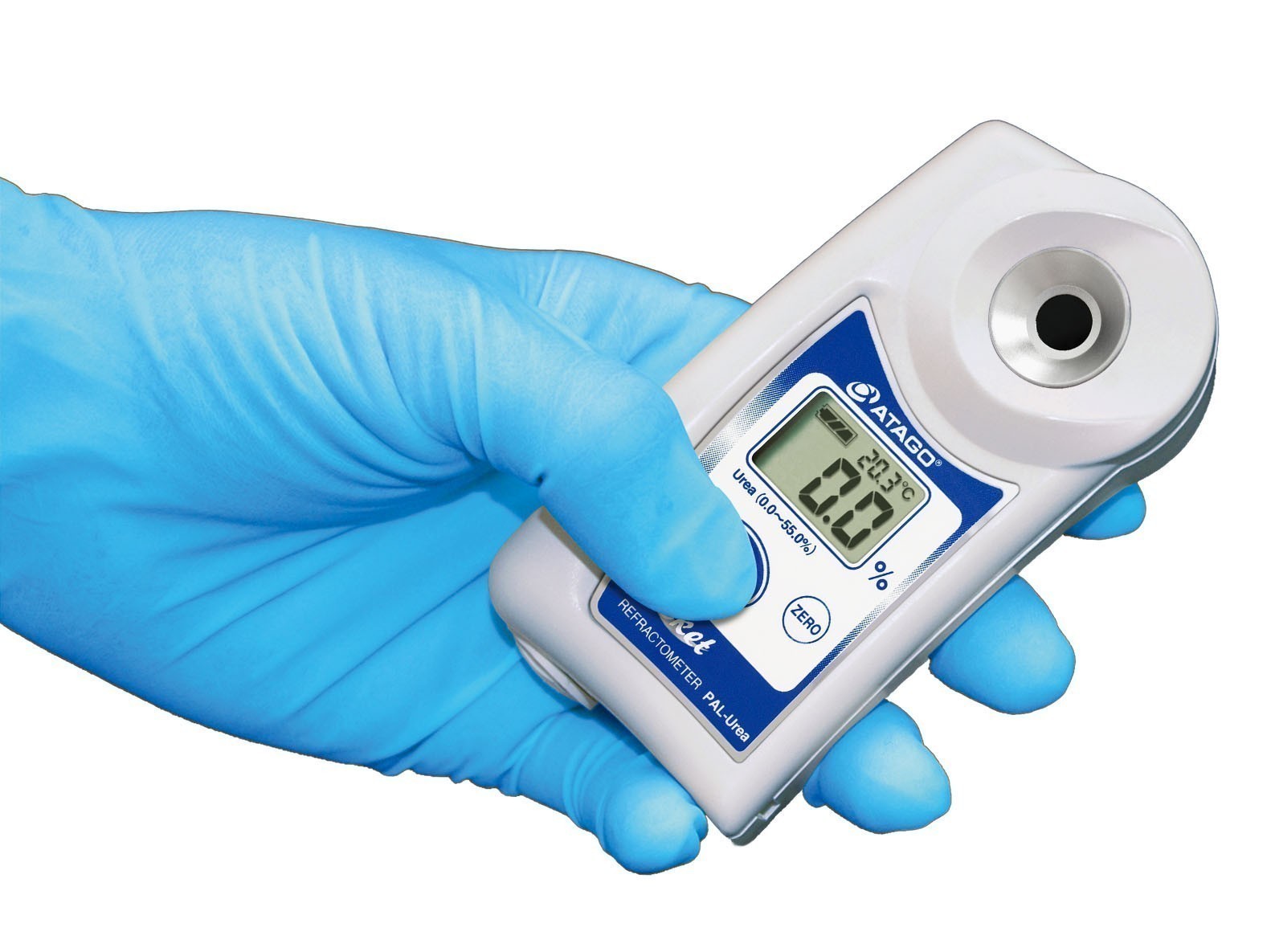

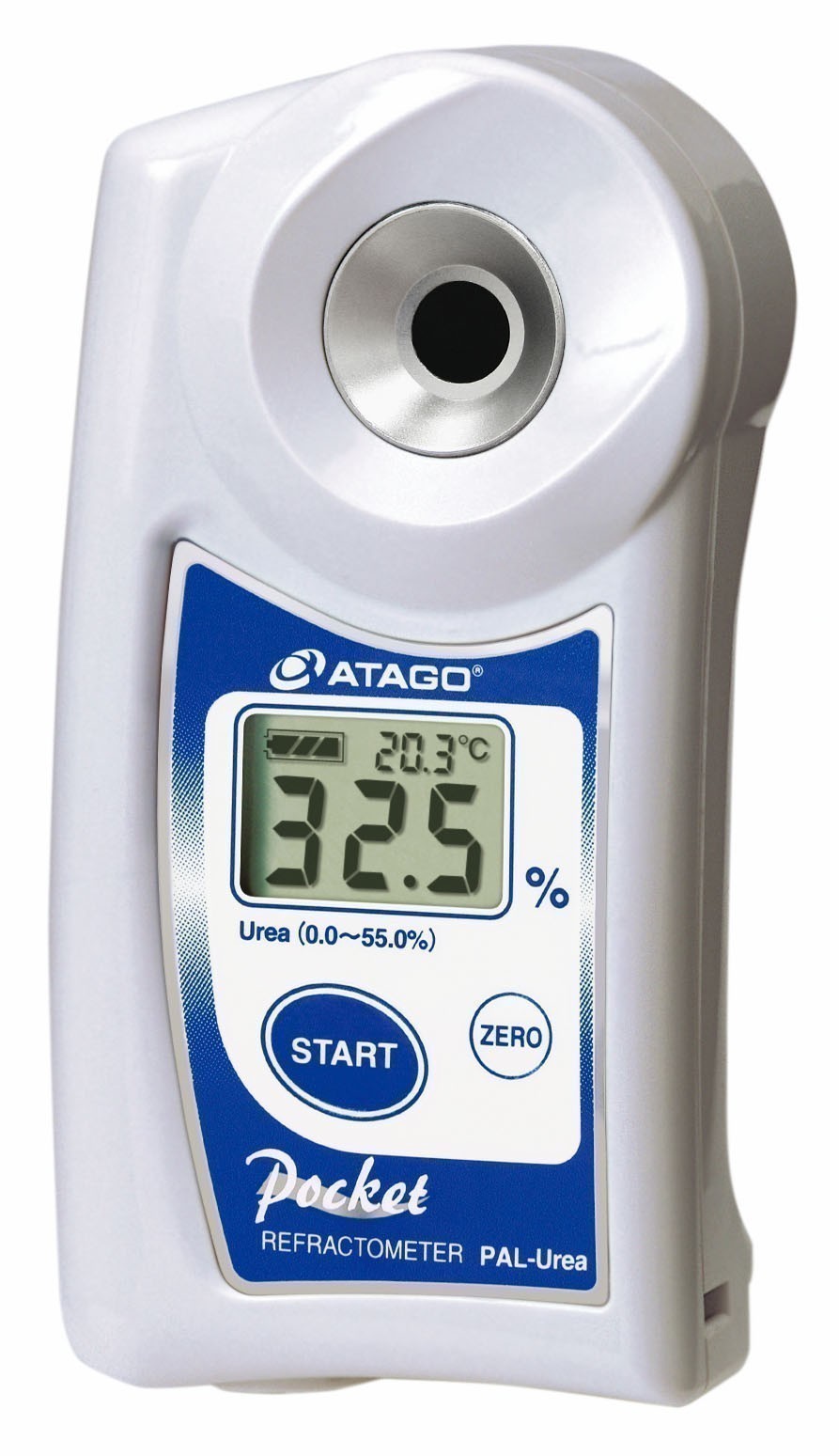

Atago 4518 PAL-Urea Digital Pocket AdBlue Refractometer, Diesel Exhaust Fluid

Score: 5.00 (votes: 1)
No reviews.
authoriseddistributor.png ezgif-2-bbd2100077_e4ca16fae1ae75348ca4916c5e80a7b7.png
SKU Range Resolution Accuracy International Protection Class Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Atago 4518 PAL-Urea Digital Pocket AdBlue Refractometer, Diesel Exhaust Fluid 4518 Urea 0.0 to 55.0% (w/w) 0.1% ±0.3% IP65 200 £530.00 4 + -

Pocket >> Palm >> Perform IoT Supported With NFC Technology

The PAL-Urea is specifically designed to measure the Urea concentration of Diesel Exhaust Fluid (DEF), also known as AdBlue* in Europe. Already proven in Europe as the only reliable, go-to instrument for easy and accurate checks, the PAL-Urea is now available in North America in time for new 2010 EPA regulations on diesel emissions.DEF needs to have a 32.5% Urea concentration in order to work effectively in SCR engines. Make sure that the DEF that comes out of your pump and into your tank is pure in quality and safe from potentially harmful additives by using the only digital hand-held refractometer already trusted by European consumers.* AdBlue is a trademark of VDA.

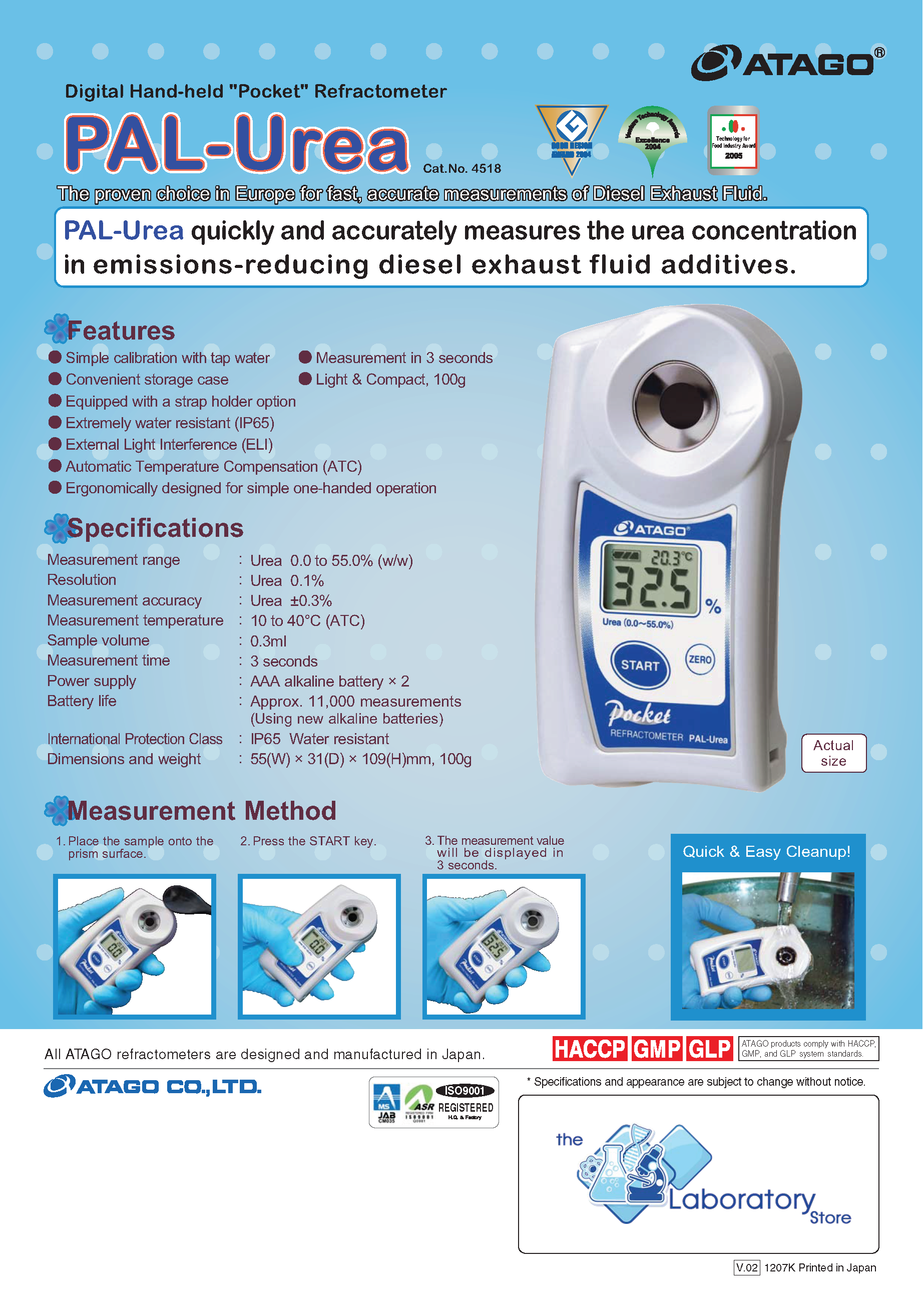

Specifications
Model PAL-Urea
Cat.No. 4518
Scale Urea
Temperature
Measurement Range Urea : 0.0 to 55.0 %
Temperature : 10 to 40 ゚C
Resolution Urea : 0.1 %
Temperature : 0.1゚C
Measurement Accuracy Urea : ± 0.3 %
Temperature : ±.1゚C
Temperature compensation range 10 to 40゚C (Automatic Temperature Compensation)
Ambient Temperature 10 to 40゚C
Sample Volume 0.3mL
Measurement Time 3 seconds
Power Supply 2 × AAA Batteries
Battery Life Approx. 11,000 times measurement
(when alkaline batteries are used)

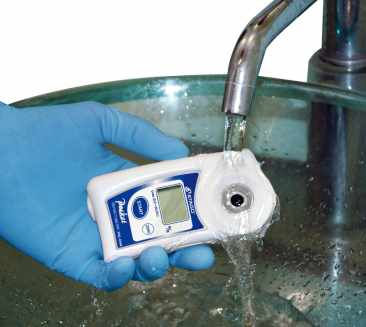

International Protection Class IP65 Dust-tight and Protected against water jets.
Dimensions & Weight 55(W) x 31(D) x 109(H)mm, 100g (Main Unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)

Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

Urea, also known as carbamide, is an organic compound with chemical formula CO(NH2)2. This amide has two –NH2 groups joined by a carbonyl (C=O) functional group.

Urea serves an important role in the metabolism of nitrogen-containing compounds by animals and is the main nitrogen-containing substance in the urine of mammals. It is a colourless, odourless solid, highly soluble in water, and practically non-toxic (LD50 is 15 g/kg for rats).[5] Dissolved in water, it is neither acidic nor alkaline. The body uses it in many processes, most notably nitrogen excretion. The liver forms it by combining two ammonia molecules (NH3) with a carbon dioxide (CO2) molecule in the urea cycle. Urea is widely used in fertilizers as a source of nitrogen (N) and is an important raw material for the chemical industry.

Applications include

  • Urea Concentration, Diesel Exhaust Fluid , DEF, AdBlue

AdBlue® is an aqueous solution with a concentration of 32.5 % urea. In North America, it is referred to as DEF (for "diesel exhaust fluid"). Urea reacts with nitrogen oxides and creates environmentally safe nitrogen and water. AdBlue® is therefore added to diesel to lower nitrogen oxide emissions. In countries where taxes are graduated according to vehicle emissions, reduced emissions of nitrous oxides may be cost efficient. Moreover, the addition of AdBlue® results in a reduction of fuel consumption by 3 % to 8 %.


    • Weight (In Grams)
      200 g
    • SKU
      4518
    • Commodity Codes
      90275000
  • Manufacturer
    Atago Co Ltd
  • Country of Origin
    Japan
  • Range
    Urea 0.0 to 55.0% (w/w), Not Applicable
  • Resolution
    0.1%, Not Applicable
  • Accuracy
    ±0.3%, Not Applicable
  • International Protection Class
    IP65, Not Applicable
