Atago 3446 Digital Suction-Type Specific Gravity Refractometer , DH-10C Specific Gravity of Battery Fluid, 1.000 to 1.400 Measurement Range
ZoomCreated with Sketch.
  • Atago 3446 Digital Suction-Type Specific Gravity Refractometer , DH-10C Specific Gravity of Battery Fluid, 1.000 to 1.400 Measurement Range
  • Atago 3446 Digital Suction-Type Specific Gravity Refractometer , DH-10C Specific Gravity of Battery Fluid, 1.000 to 1.400 Measurement Range
  • Atago 3446 Digital Suction-Type Specific Gravity Refractometer , DH-10C Specific Gravity of Battery Fluid, 1.000 to 1.400 Measurement Range

Atago 3446 Digital Suction-Type Specific Gravity Refractometer , DH-10C Specific Gravity of Battery Fluid, 1.000 to 1.400 Measurement Range

Not rated yet
0
Atago Co Ltd



Measures specific gravity and temperature simultaneously

This model is specifically designed for measuring specific gravity of battery sulfuric acid.The DH-10C allows users to easily measure the concentration of sulfuric acid without coming in contact with this highly corrosive acid.Cleaning and zero-setting can be done with tap water.


Specifications


ModelDH-10C
Cat.No.3446
RangeSulfuric Acid Specific Gravity 1.000 to 1.400
Temperature : -10 to 50°C
Resolution0.001
Accuracy±0.002 (10 to 30℃)
±0.003 (0 to 10 and 30 to 40℃)
±0.005 (-10 to 0 and 40 to 50℃)
Temperature compensation5 to 40°C
Sample Volume2mL
Power Supply006P alkaline battery (9V)
Included AccessoriesOne 95 mm stainless pipe, one 95 mm silicon tube
Dimensions & Weight7 × 4 × 21 cm, 235 g (Main unit only)
Call 01463 830401 For Any Assistance

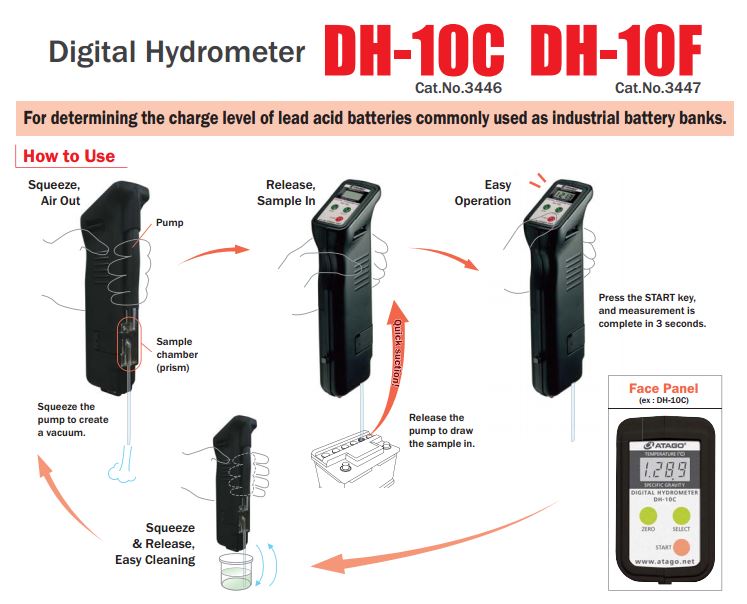

No more cumbersome cleaning. Lightweight, compact, and battery-operated for maximum portability. Single-handed operation from measurement to cleaning, without touching any liquid!

Increased efficiency over a conventional glass hydrometer and thermometer

A service tech visits 30 power systems a month. Using a standard hydrometer, it takes him 20 minutes per system to do the job. The DH-10 Digital Hydrometer reduces the service time to 2 minutes per system.



    • SKU
      3446
    • Commodity Codes
      90275000
  • Measurement Range
    Specific Gravity of Battery : 1.000 to 1.400
  • Resolution
    0.001
  • Measurement Accuracy
    ±0.002
  • Ambient Temperature (°C)
    5 to 40
  • Use
    Battery Fluid
  • International Protection Class
    IP64
  • Manufacturer
    Atago Co Ltd
  • Country of Origin
    Japan

Icons, for functions, specifications and scales have been added to this catalogue

Function
Can be connected to a recorderMeasurement at a set temperature
Can be connected to a printerAutomatic Temperature Compensation
Alarm output for high- and low-limit valuesCan be connected to a circulating
RS232C InterfaceContinuous measurement
In-line measurementHigh temperature samples
User scales can be inputtedExternal Light Interference



SpecificationScale
Calibration with waterClinical refractometers
Calibration with exclusive standard liquidRefractive index scale
Compact and easy to carrySalt concentration scale
Digital displaySeawater scale
AC outlet (AC100 to 240V)Wine scale
Battery operated
