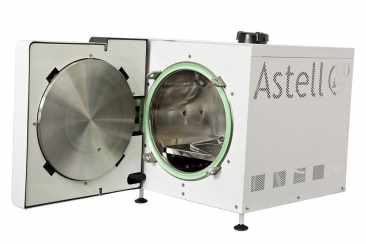

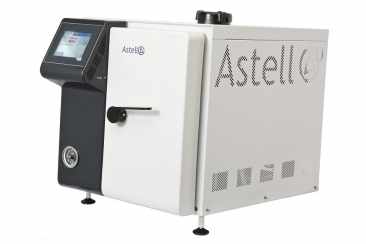

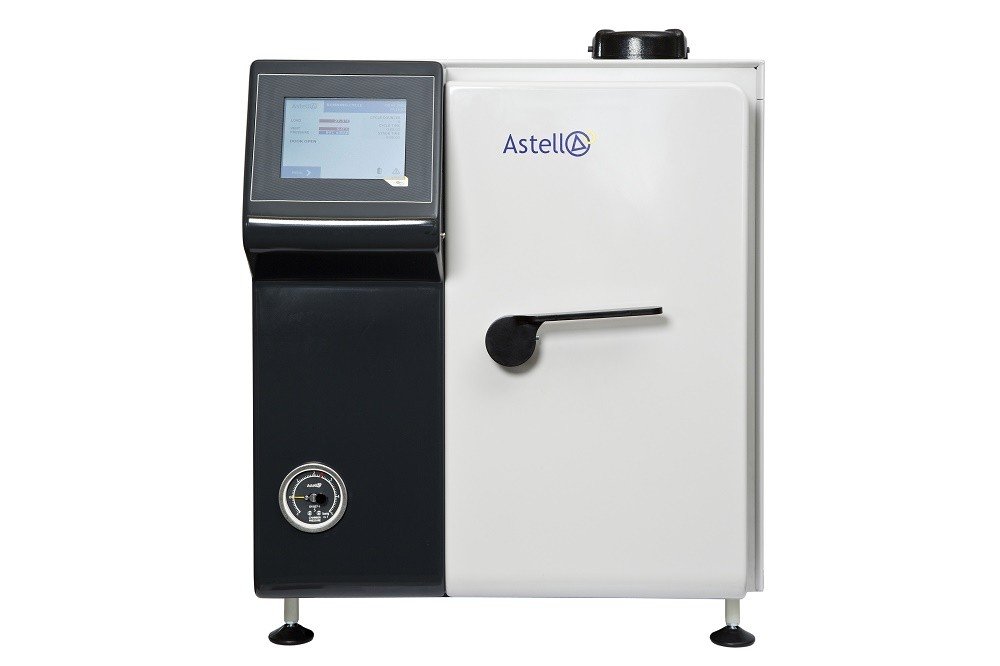

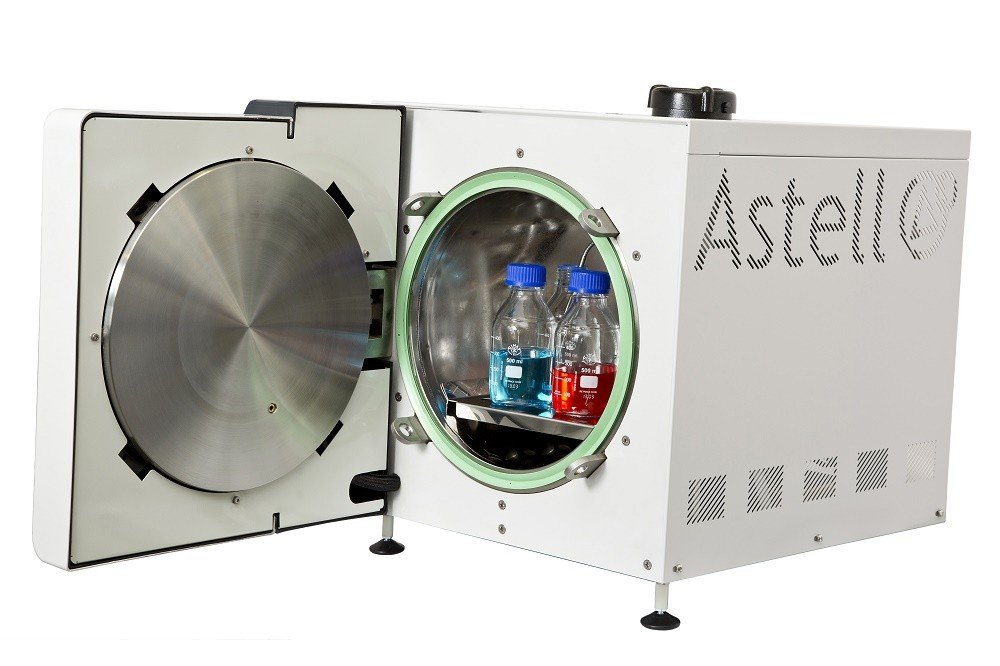

Astell Scientific AMB230BT Benchtop Autoclave, 43 Litres, Autofill Steam Source, Single Phase 230 volts, 13 Amps, 50/60Hz
Astell’s front loading Benchtop autoclaves are available in two versions. Both require no plumbing, and operate from a standard single phase power supply.
‘Classic’ and ‘Autofill’ models are available.
Classic - The ‘Classic’ version requires manual water-fill and during the cycle condensate leaves the vessel via a silicone tube that can be connected to a heat-resistant bottle.
Autofill - The ‘Autofill’ version has an integral reservoir. Once filled, this provides water for up to 15 cycles, and also acts as a collection vessel for condensate and the water that is automatically returned from the chamber at the end of each cycle.
Model No | Steam Source | Volume (Litres) | Power Supply | Chamber dia x depth (mm) | Overall Dims wxhxd (mm) |
---|---|---|---|---|---|
AMB230BT | Autofill | 43 | Single Phase 230 volts, 13 Amps, 50/60Hz | 350 x 460 | 520 x 540 x 780 |
Ecofill benchtop autoclave:
The ‘Ecofill’ version has an integral reservoir and an in-built 'autofill' water re-circulation system. Once the reservoir is filled, this provides water for up to 15 cycles, and also acts as a collection vessel for condensate and the water that is automatically returned from the chamber at the end of each cycle, minimising water usage.
Classic benchtop autoclave:
The ‘Classic’ version requires manual water-fill and during the cycle condensate leaves the vessel via a silicone tube that can be connected to a heat-resistant bottle.
FEATURES
- A choice of 33, 43 and 63 litre models
- Self contained design with no installation required - just fill it with water and plug it in and the machine is ready to be used
- No mains water supply or drain necessary
- Fully programmable 5.7" Colour Touch Screen controller
- Five pre-programmed cycles and up to 50 available
- Five password levels to stop lower level users making changes
- FDA 21 CFR part 11 software option available
- USB interface for downloading controller data
- Temperature range of 100°C to 138°C (0.2 - 2.4 Bar)
- Timed/Pulsed Free Steaming
- Holdwarm / Delayed Start feature
- 316 stainless steel electropolished chamber
- Base shelf within the chamber
- Fast action door closure mechanism
- Validation Port
- Cooling Lock
- Over Temperature Protection
- Pressure Gauge
- Calibration and Validation available
- Optimised for low water and power consumption
- Standard Astell safety features
